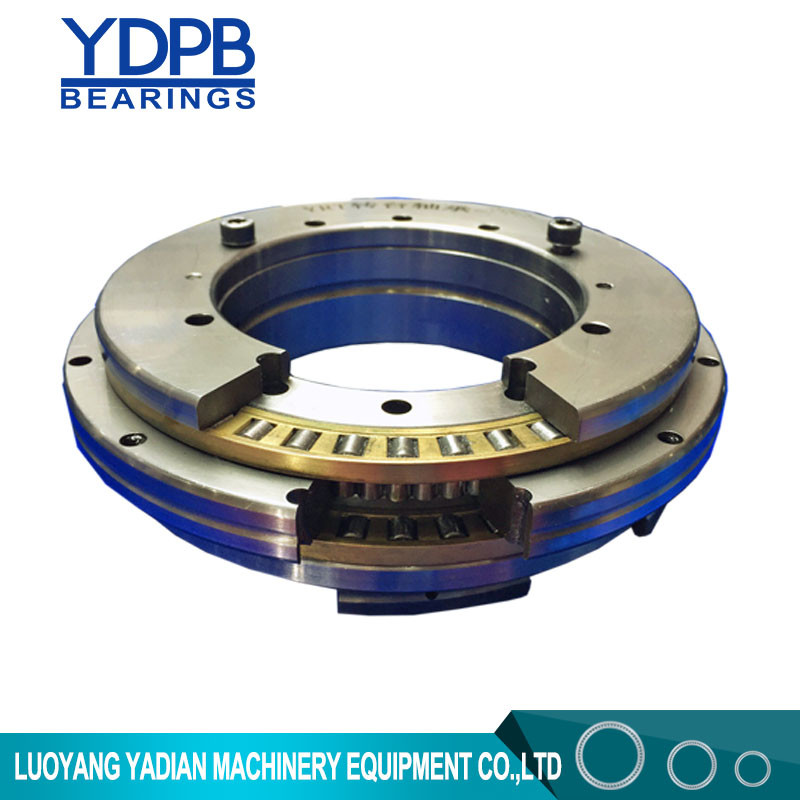

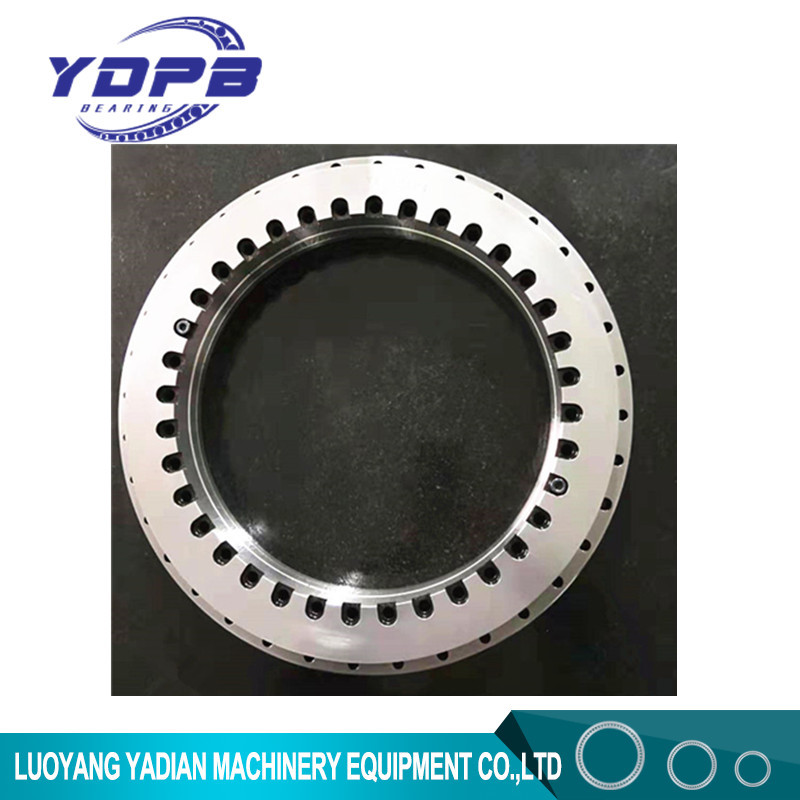

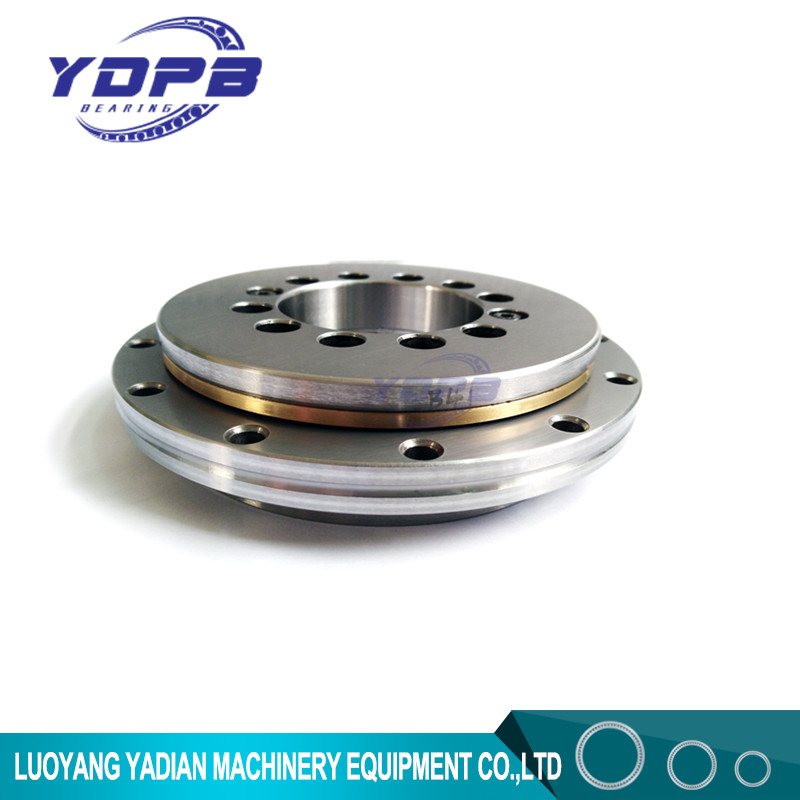

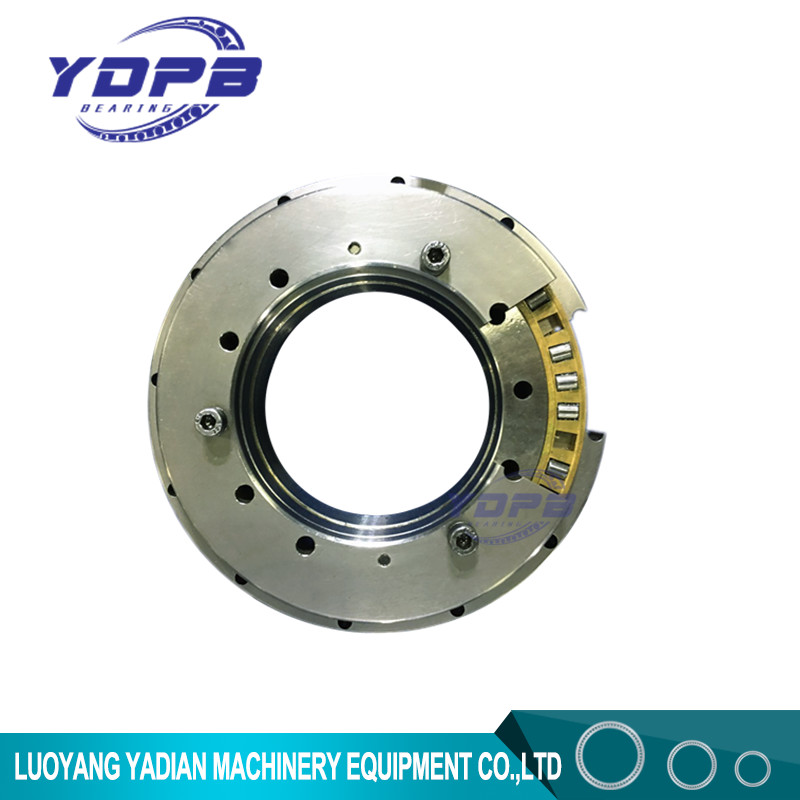

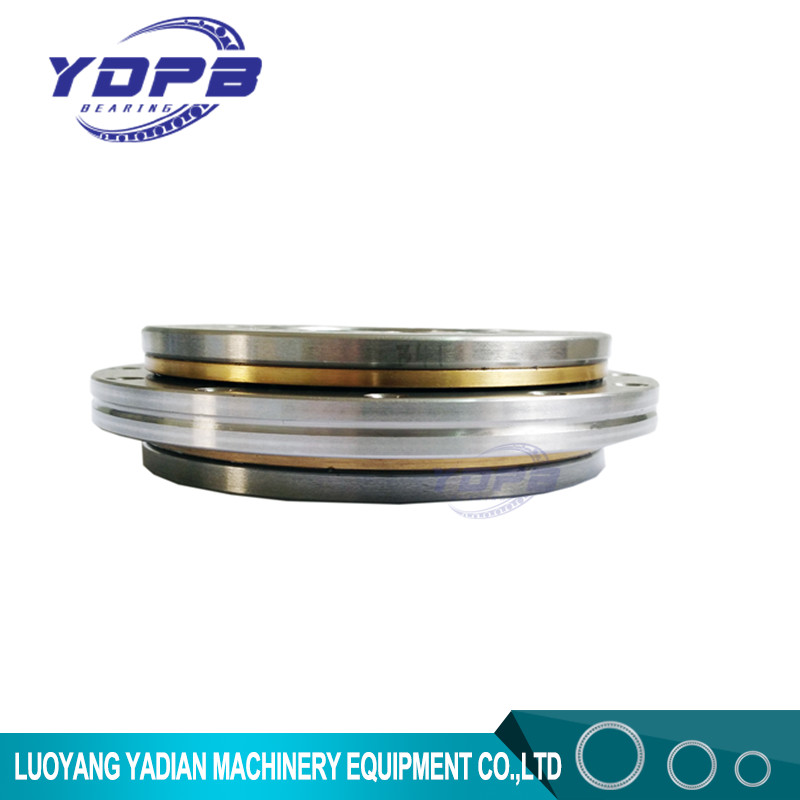

YRT1030 low price yrt rotary bearing1030X1300X145mm yrt bearing in stock

  • YRT1030 low price yrt rotary bearing1030X1300X145mm yrt bearing in stock
  • YRT1030 low price yrt rotary bearing1030X1300X145mm yrt bearing in stock
  • YRT1030 low price yrt rotary bearing1030X1300X145mm yrt bearing in stock
  • YRT1030 low price yrt rotary bearing1030X1300X145mm yrt bearing in stock
  • YRT1030 low price yrt rotary bearing1030X1300X145mm yrt bearing in stock
Place of Origin Luoyang，China
Nombre de la marca YDPB
Certificación ISO
Model Number YRT-1030
Minimum Order Quantity 1PCS
Precio 260$~~440$/pc
Packaging Details plastic film+waterproof paper+thin foam+wooden case
Delivery Time within 5-8days
Payment Terms Western Union, T/T, MoneyGram
Supply Ability 800pcs/month

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Material Gcr15SiMn Dimension 1030X1300X145mm
Load Combined load Axial Radial Roller Bearings Model YRT-1030
Application CNC machine tool Cage Brass cage
Precision level P4,P2
Deja un mensaje
Descripción de producto

YRT-1030 Large Rotary Table Bearings size 1030X1300X145mm china yrt turn table bearing supplier Bearings(Drawing is available if needed)
Model number- YRT-1030
Inner ring(mm)- 1030
Outer ring(mm)- 1300
Width(mm)- 145
Weight(Kg)-375

Ca(KN):1380

Coa(KN):12000

Cr(KN):620

Cor(KN):2650

Limiting speed(r/min):39
Fixing Hole(Outer ing)
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring


Main Models
YRT-50 Bearings,YRT-80 bearings,YRT-100 bearings,YRT-120 bearings,YRT-150 bearings,YRT-200 bearings,YRT-260 bearings,YRT-325 bearings,YRT-395 bearings,YRT-460 bearings,YRT-580 bearings,YRT-650 bearings,YRT-850 bearings,YRT-950 bearings,YRT-1030 bearings,YRT-1200 bearings.



Main parameters

Bearing
type		 d
(mm)		 D
(mm)		 H
(mm)		 Screw tightening
torque(Nm)		 Axial dynamic
Load(KN)		 Radial dynamic
Load(KN)		 Weight
(KG)
YRT-50 50 126 30 8.5 38 28.5 1.6
YRT-80 80 146 35 8.5 56 42.5 2.4
YRT-100 100 185 38 8.5 76.5 47.5 4.1
YRT-120 120 210 40 14 102 52 5.3
YRT-150 150 240 40 14 112 56 6.2
YRT-180 180 280 43 14 118 69.5 7.7
YRT-200 200 300 45 14 120 81.5 9.7
YRT-260 260 385 55 34 160 93 18.3
YRT-325 325 450 60 34 300 120 25
YRT-395 395 525 65 34 355 186 33
YRT-460 460 600 70 34 490 200 45
YRT-580 580 750 90 68 490 228 89
YRT-650 650 870 122 116 1040 490 170
YRT-850 850 1095 124 284 1000 455 253
YRT-950 950 1200 132 284 1290 530 312
YRT-1030 1030 1300 145 284 1380 620 375

Application
Applications "Product Application
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc"
