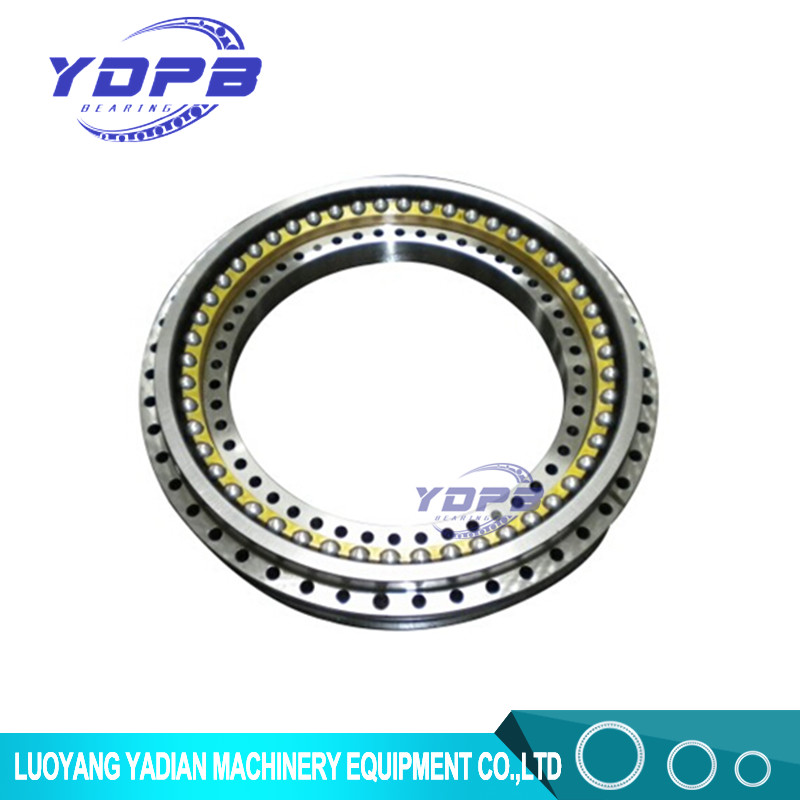

ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing

  • ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing
  • ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing
  • ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing
  • ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing
  • ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing
Place of Origin Luoyang，China
Nombre de la marca YDPB
Certificación ISO
Model Number ZKLDF460
Minimum Order Quantity 1PCS
Precio 1$~~440$/pc
Packaging Details plastic film+waterproof paper+thin foam+wooden case
Delivery Time within 5-8days
Payment Terms Western Union, T/T, MoneyGram
Supply Ability 800pcs/month

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Material Gcr15SiMn Dimension 460x600x70mm
structure Axial angular contact ball Model ZKLDF460
Application Rotary Table Cage Brass cage
Precision level P4,P2
Deja un mensaje
Descripción de producto

 Axial angular contact ball bearings ZKLDF460,Double direction,for screw mounting.sealing shields on both sides.
Model number- ZKLDF460
Inner ring(mm)- 460
Outer ring(mm)- 600
Width(mm)- 70
Weight(Kg)- 50
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring


Features:
ZKLDF series(four point ball contact),with low frictional ,high rotate accurancy and high limit speed etc. features, can bear higher axial,radial load and with higher tilting rigity.,Main application is the area which need combined load and high precision. E.g machine tool rotary table ,grinding head and other measuring equipment.


Series model No.
ZKLDF100, ZKLDF120, ZKLDF150, ZKLDF200, ZKLDF260, ZKLDF325, ZKLDF395, ZKLDF460, ZKLDF580

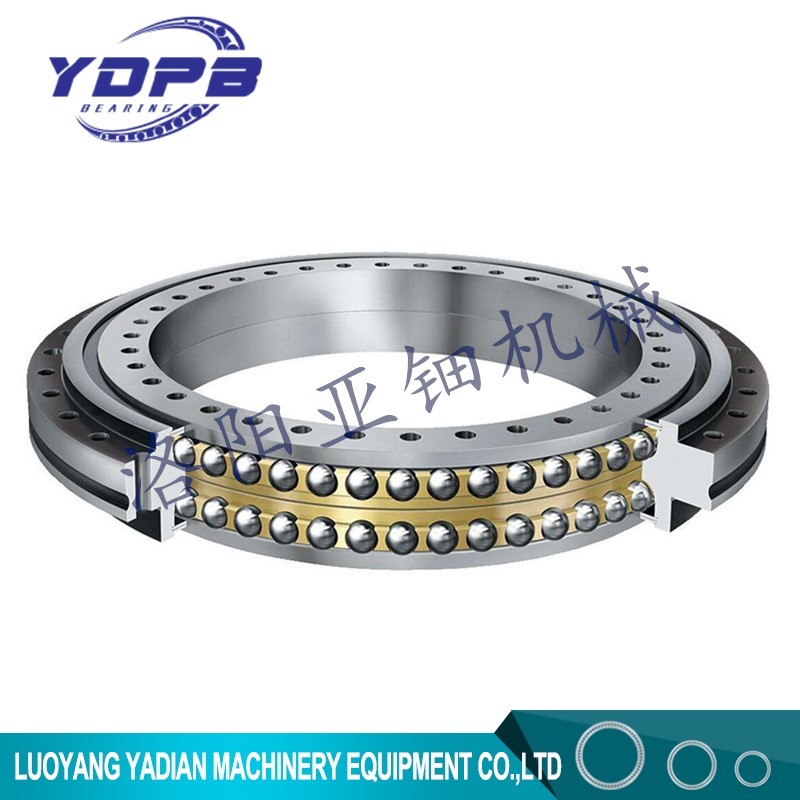

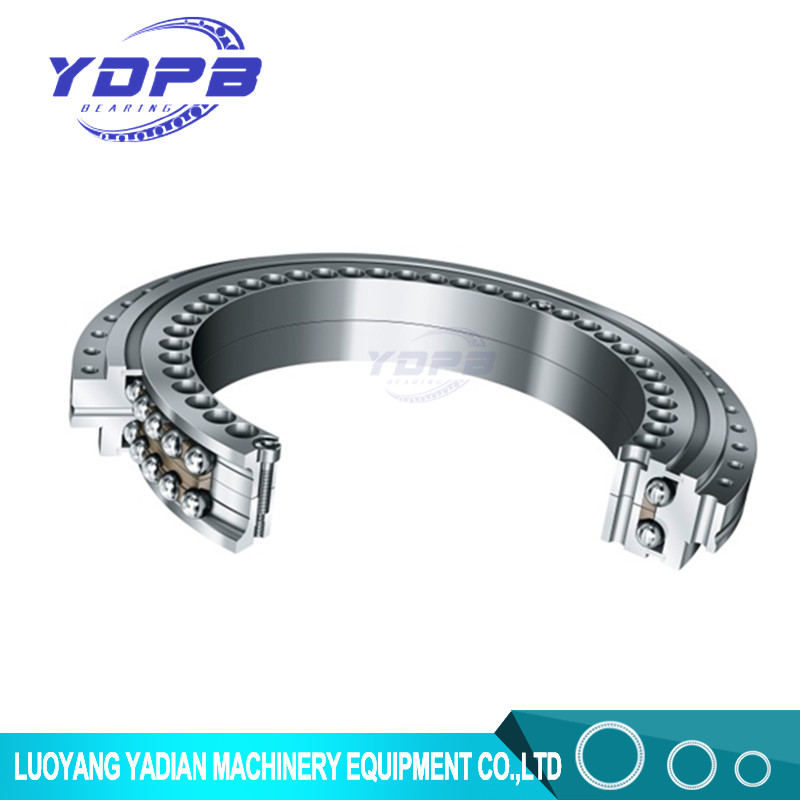

Structure:
ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing 0



Bearing type boundary dimensions fixing holes
d D H H1 D1 D2 J J1 inner ring outer ring
unit:mm d1 d2 a quantity d3 quantity
mm mm
ZKLDF100 100 185 38 25 160 136 112 170 5.6 10 5.4 16 5.6 15
ZKLDF120 120 210 40 26 184 159 135 195 7 11 6.2 22 7 21
ZKLDF150 150 240 40 26 214 188 165 225 7 11 6.2 34 7 33
ZKLDF200 200 300 45 30 274 243 215 285 7 11 6.2 46 7 45
ZKLDF260 260 385 55 36.5 345 313 280 365 9.3 15 8.2 34 9.3 33
ZKLDF325 325 450 60 40 415 380 342 430 9.3 15 8.2 34 9.3 33
ZKLDF395 395 525 65 42.5 486 450 415 505 9.3 15 8.2 46 9.3 45
ZKLDF460 460 600 70 46 560 520 482 580 9.3 15 8.2 46 9.3 45



Number of retaining screws Extraction thread hole Number of pitches X angle of pitches Screw tightening torque Basic load rating Limiting speed Bearing frictional torque weight bearing type
axial
dynamic load static load
MA Ca Coa grease
G quantity Xt quantity Nm KN r/min Nm Kg
2 M5 3 18×20° 8.5 67 251 2800 1.6 4.5 ZKLDF100
2 M8 3 24×15° 14 72 315 2400 2 6 ZKLDF120
2 M8 3 36×10° 14 76 365 2000 3 7.5 ZKLDF150
2 M8 3 48×7.5° 14 112 550 1600 4.5 11 ZKLDF200
2 M12 3 36×10° 34 155 920 1200 7.5 22 ZKLDF260
2 M12 3 36×10° 34 165 1110 1000 11 28 ZKLDF325
2 M12 3 48×7.5° 34 214 1470 800 16 39 ZKLDF395
2 M12 3 48×7.5° 34 255 1860 700 21 50 ZKLDF460





Related Pictures

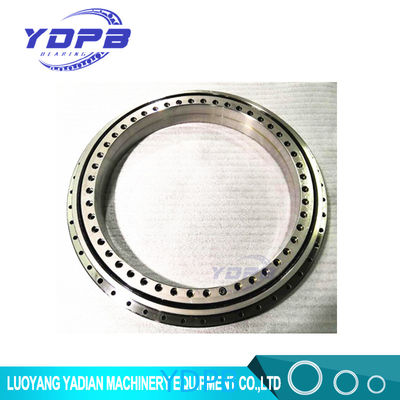

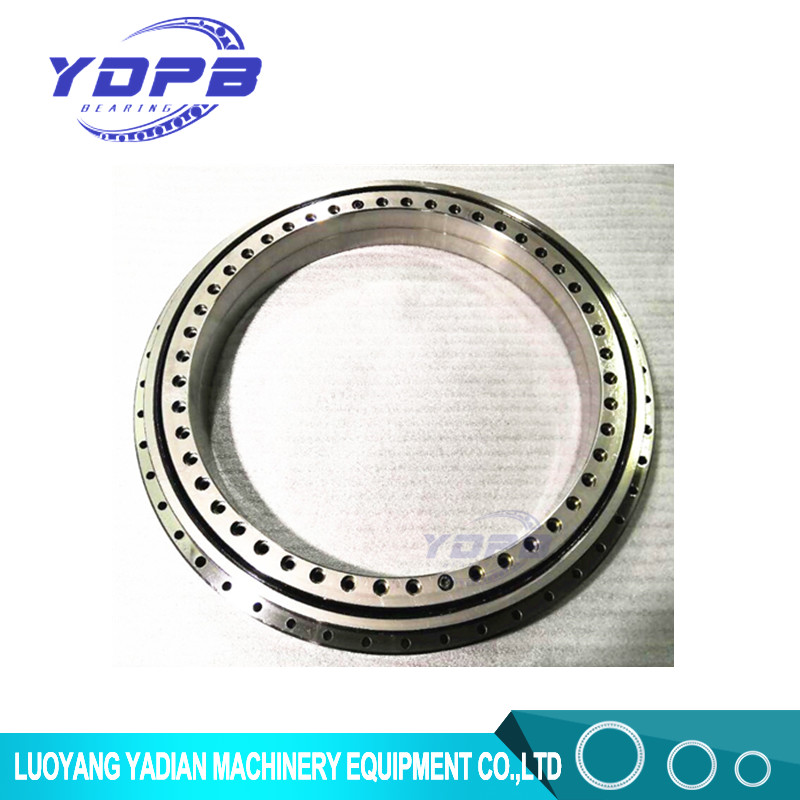

ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing 1ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing 2

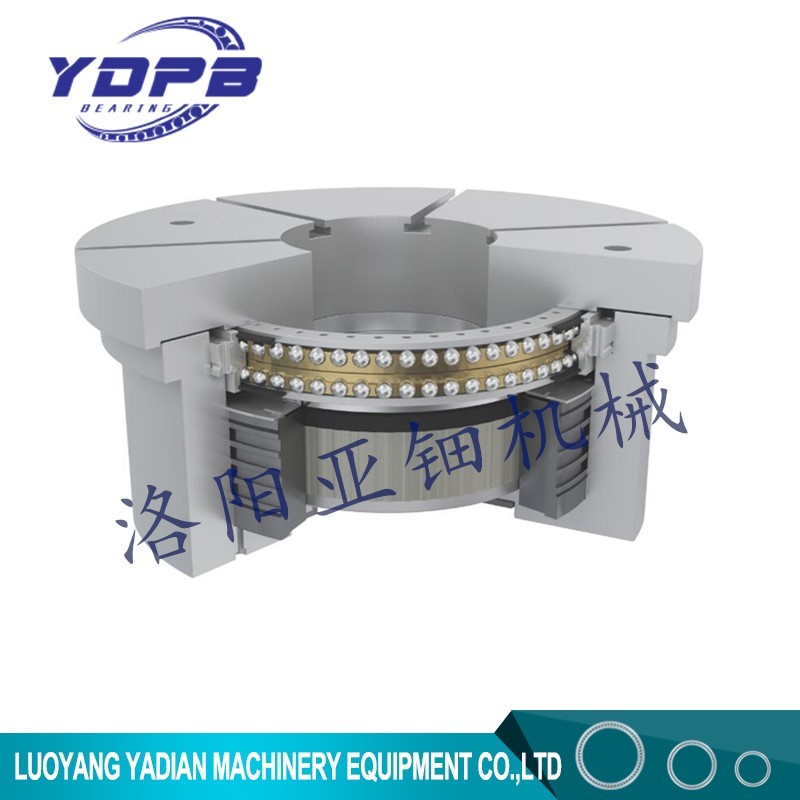

Application
Applications "Product Application
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc"


Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
