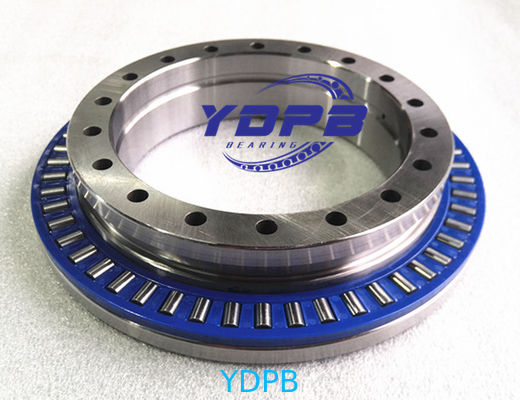

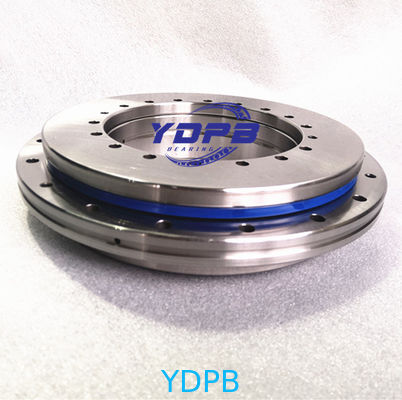

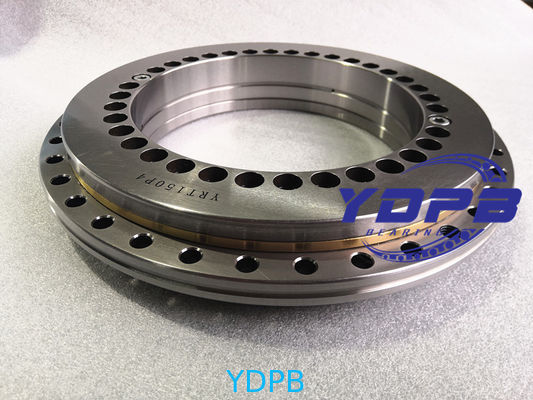

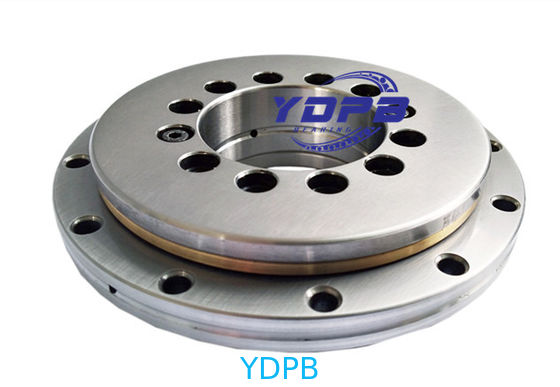

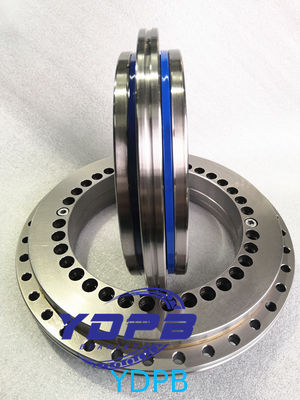

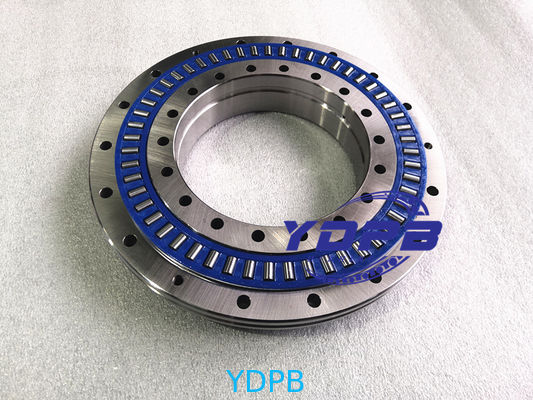

High Precision Rotary Table Bearing YDRT50 bearing 50x126x30mm axial radial bearings for cnc machine tool

  • High Precision Rotary Table Bearing YDRT50 bearing 50x126x30mm axial radial bearings for cnc machine tool
  • High Precision Rotary Table Bearing YDRT50 bearing 50x126x30mm axial radial bearings for cnc machine tool
  • High Precision Rotary Table Bearing YDRT50 bearing 50x126x30mm axial radial bearings for cnc machine tool
  • High Precision Rotary Table Bearing YDRT50 bearing 50x126x30mm axial radial bearings for cnc machine tool
  • High Precision Rotary Table Bearing YDRT50 bearing 50x126x30mm axial radial bearings for cnc machine tool
  • High Precision Rotary Table Bearing YDRT50 bearing 50x126x30mm axial radial bearings for cnc machine tool
Place of Origin Luoyang，China
Nombre de la marca YDPB
Certificación ISO
Model Number YDRT50
Minimum Order Quantity 1PCS
Precio 100-180USD
Packaging Details Plastic vacumm +carton+foam+wooden case
Delivery Time within 2 days for stock ones
Payment Terms L/C, T/T, Western Union
Supply Ability 10000PCS/Month

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Type Turntable bearings Seals type No seals
Feature Three-row cylindrical roller ,axial radial load Bore size 50mm
Outside diameter 126mm Ring Material GCR15
Cage Material Nylon/Brass Precision P2/P4
Puede marcar los productos que necesita y comunicarse con nosotros en el tablero de mensajes.
Model ID（mm) OD（mm) Height（mm) Weight（kg）
YRT50 50 126 30 1.6
YRT80 80 146 35 2.4
YRT100 100 185 38 4.1
YRT120 120 210 40 5.3
YRT150 150 240 40 6.2
YRT180 180 280 43 7.7
YRT200 200 300 45 9.7
YRT260 260 385 55 18.3
YRT325 325 450 60 25
YRT395 395 525 65 33
YRT460 460 600 70 45
YRT580 580 750 90 89
YRT650 650 870 122 170
YRT850 850 1095 124 253
YRT950 950 1200 132 312
YRT1030 1030 1300 145 375
YRT1200 1200 1490 164 450
Deja un mensaje
Model ID（mm) OD（mm) Height（mm) Weight（kg）
Descripción de producto

Axial/radial bearings---Rotary Table Bearings

Axial/radial bearings are double direction axial bearings for screw mounting, with a radial guidance bearing. These ready-to-fit,greased units are very rigid, have high load carrying capacity and run with particularly high accuracy. They can support radial forces, axial forces from both directions and tilting moments free from clearance. The bearings are available in several series. For applications with low speeds and small operating durations, such as indexing tables and swivel type milling heads, the most suitable bearings are generally series YRT and YRTC.

For the bearing arrangements of direct drive axes, there is the series YRTS. Due to their high limiting speeds and very low, uniform frictional torque across the whole speed range, these bearings are particularly suitable for combination with torque motors. For higher accuracy requirements, these bearings are also available with restricted axial and radial runout accuracy.

High Precision Rotary Table Bearing YDRT50 bearing 50x126x30mm axial radial bearings for cnc machine tool 0

Bearing type Boundary Dimensions Fixing holes Number of retaining screws Extraction thread hole Number of pitches X angle of pitches Screw tightening torque Basic load rating Limiting speed Bearing frictional torque Weight
axial radial
Inner ring Outer ring dynamic load static
load		 dynamic load static
load
d D H H1 H2 C d1 dn dm d0 ds Ts QTY dL QTY
MA2) Ca Coa Cr Cor grease
unit: mm unit:mm mm G QTY QTY x t Nm KN r/min Nm Kg
YRT50 50 126 30 20 10 10 105 63 116 5.6 9 4.2 10 5.6 12 2 — — 12×30° 8.5 38 158 28.5 49.5 440 2.5 1.6
  •

High Precision Rotary Table Bearing YDRT50 bearing 50x126x30mm axial radial bearings for cnc machine tool 1High Precision Rotary Table Bearing YDRT50 bearing 50x126x30mm axial radial bearings for cnc machine tool 2High Precision Rotary Table Bearing YDRT50 bearing 50x126x30mm axial radial bearings for cnc machine tool 3High Precision Rotary Table Bearing YDRT50 bearing 50x126x30mm axial radial bearings for cnc machine tool 4

Axial angular contact ball bearings

Axial angular contact ball bearings ZKLDF are low-friction, ready-to-fit, pregreased bearing units with high accuracy for very high speeds, high axial and radial loads and high demands on

tilting rigidity.Axial angular contact ball bearings are particularly suitablefor precision applications involving combined loads. Their preferred areas of use are bearing arrangements in rotary tables with a main

spindle function, for example in combined milling and turning, as well as in milling, grinding and honing heads and in measurement and testing equipment.

Axial/radial bearings with angular measuring system

Axial/radial bearings with angular measuring system YRTM and YRTSM correspond in mechanical terms to series YRT and YRTS, but are additionally fitted with an angular measuring system. The measuring system can measure angles to an accuracy of a few angular seconds by non-contact, magneto-resistive means.

Pls contact us for more
