YRT100VSP Super-precision axial-radial cylindrical roller bearings for multi-spindle heads

  • YRT100VSP Super-precision axial-radial cylindrical roller bearings for multi-spindle heads
  • YRT100VSP Super-precision axial-radial cylindrical roller bearings for multi-spindle heads
  • YRT100VSP Super-precision axial-radial cylindrical roller bearings for multi-spindle heads
  • YRT100VSP Super-precision axial-radial cylindrical roller bearings for multi-spindle heads
Place of Origin Luoyang，China
Nombre de la marca YDPB
Certificación ISO
Model Number YRT100P2
Minimum Order Quantity 1PCS
Precio 100-300USD
Packaging Details Vacuum packaging+carton + Pearl cotton+wooden case
Delivery Time 5-8 woking days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000PCS/Month

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Type Slewing Bearing Seals type Open
Bore size 100 Outside diameter 185
Material GCR15 Application NC rotary table/ machine tool
Bearing type Three-row cylindrical roller Sample Available
Main markets Global,USA,Germany,Spain,Korea etc. Cage Brass cage/Nylon cage
Deja un mensaje
Descripción de producto

YRT100VSP rotary table bearing details

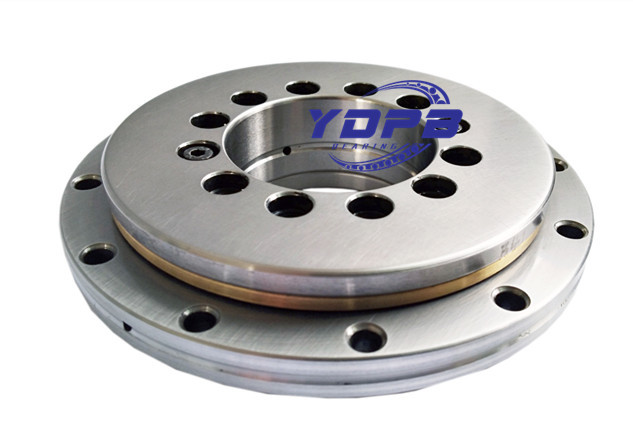

YRT100VSP Super-precision axial-radial cylindrical roller bearings for multi-spindle heads 0

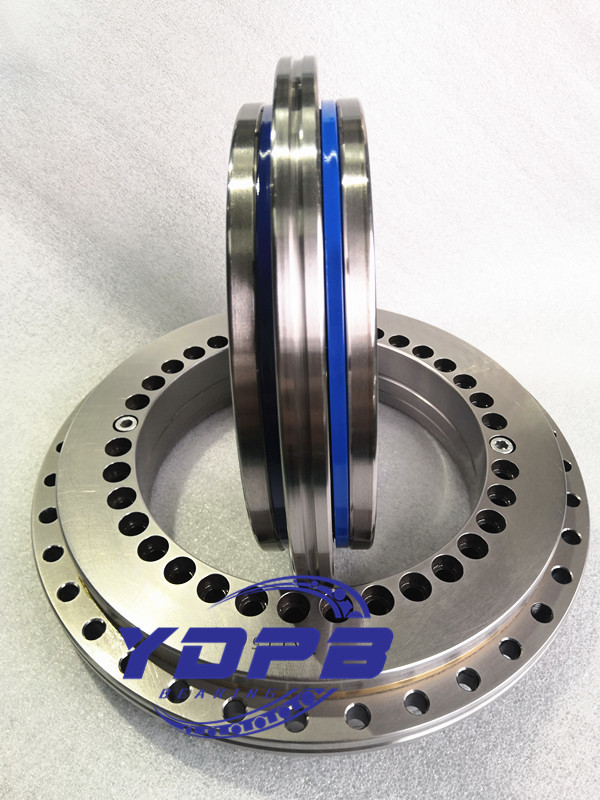

YRT100VSP Super-precision axial-radial cylindrical roller bearings for multi-spindle heads 1



Bearing type Boundary Dimensions Fixing holes Number of retaining screws Extraction thread hole Number of pitches X angle of pitches Screw tightening torque Basic load rating Limiting speed Bearing frictional torque Weight
axial radial
Inner ring Outer ring dynamic load static
load		 dynamic load static
load
d D H H1 H2 C d1 dn dm d0 ds Ts QTY dL QTY
MA2) Ca Coa Cr Cor grease
unit: mm unit:mm mm G QTY QTY x t Nm KN r/min Nm Kg

YRT100 100 185 38 25 13 12 160 112 170 5.6 10 5.4 16 5.6 15 2 M5 3 18×20° 8.5 76.5 415 47.5 120 430 3 4.1

YRT bearings structure

It consists of a thrust/radial housing washer,a thrust/radial shaft washer,two axial needle roller and cage assemblies and cage assemblies and a group of radial cylindrical roller, housing washer and shaft washer have equally spaced fitting bolt holes.

YRT bearings advantages

This kind of bearings have high axial load and radial load ,and high tilting rigidity and high precision.

YRT bearings applications

This bearing can be used to the machine tool and other high precision machinery of the rotary table or sub-set,and also can be used for chuck,measuring instruments and test equipment and rotary table configuration, this bearing requires higher quality of the parts to match it .you can control screw tightening torque when install it.

YRT bearings include Brass cage and nylon cage,below phontoes for your reference

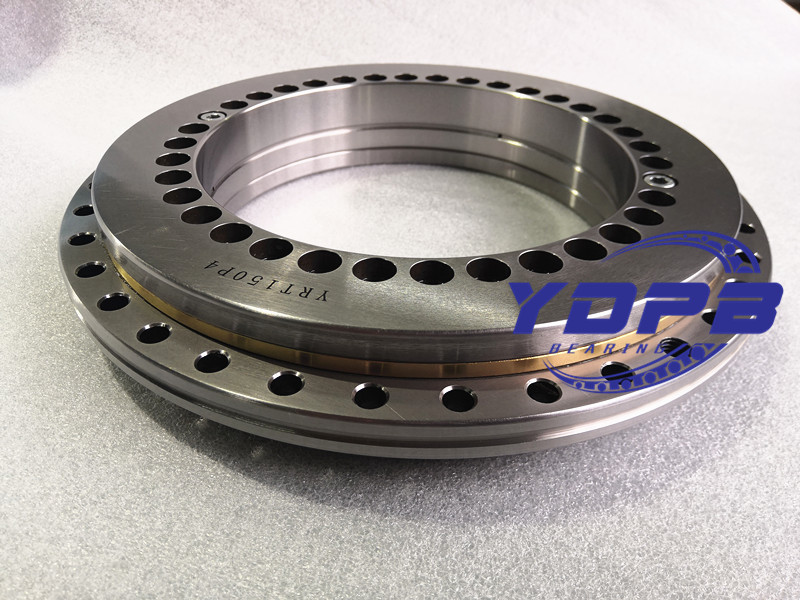

YRT100VSP Super-precision axial-radial cylindrical roller bearings for multi-spindle heads 2

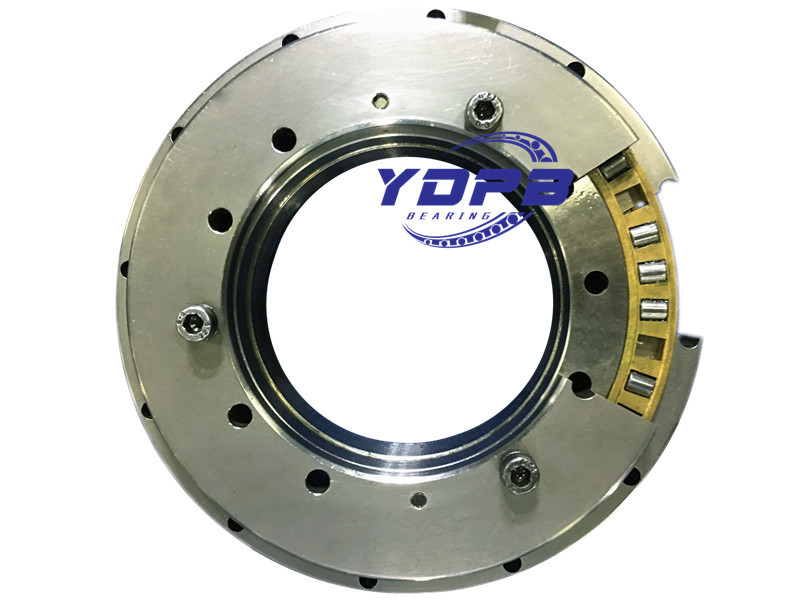

YRT100VSP Super-precision axial-radial cylindrical roller bearings for multi-spindle heads 3

Drawing can be shared when send us email.
