YRT-460 turntable bearings manufacturers 460X600X70mm custom made

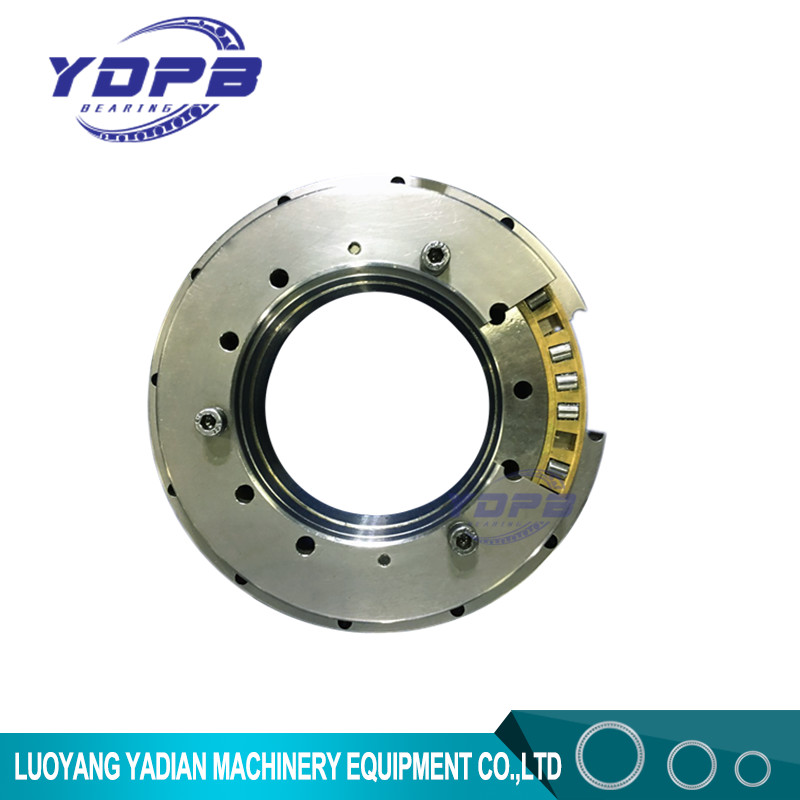

  • YRT-460 turntable bearings manufacturers 460X600X70mm custom made

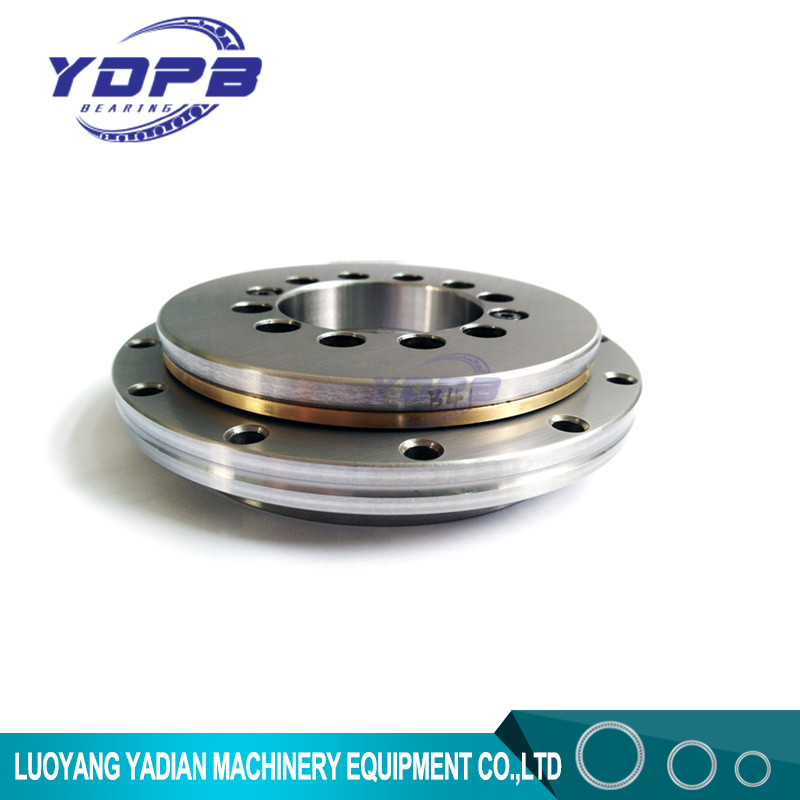

  • YRT-460 turntable bearings manufacturers 460X600X70mm custom made

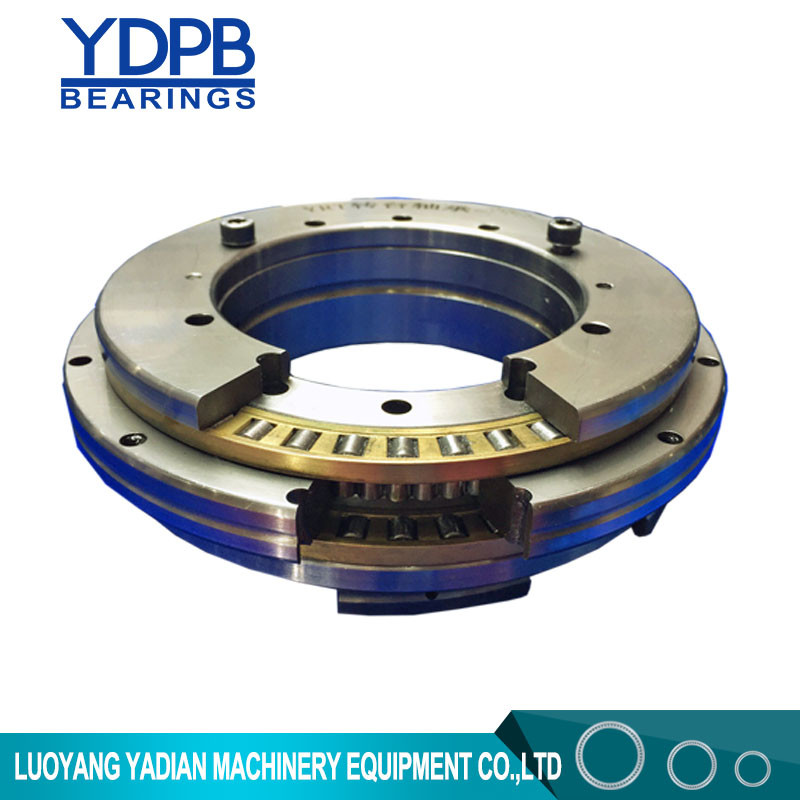

  • YRT-460 turntable bearings manufacturers 460X600X70mm custom made

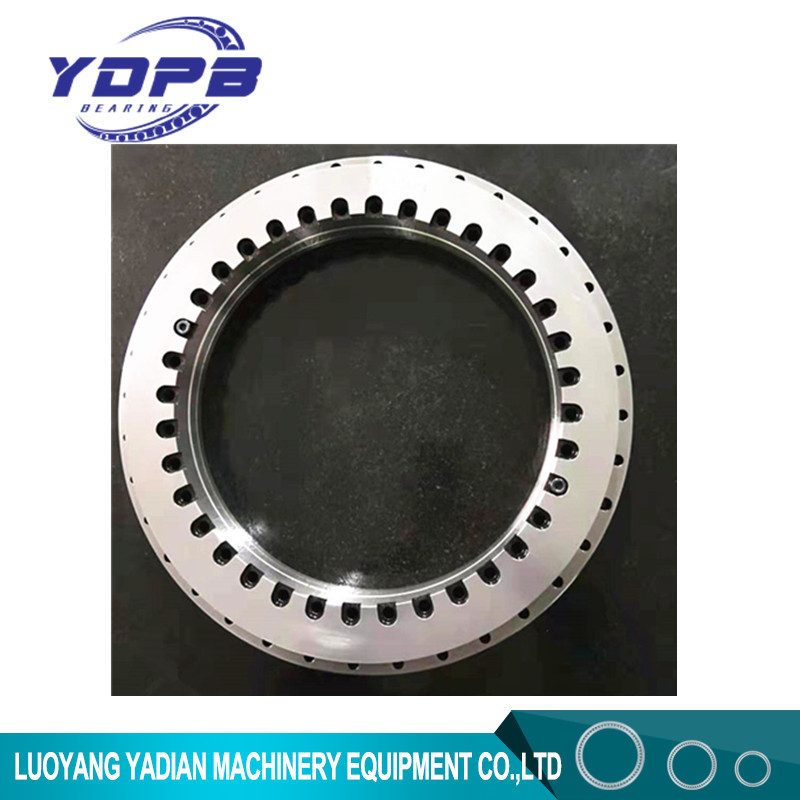

  • YRT-460 turntable bearings manufacturers 460X600X70mm custom made

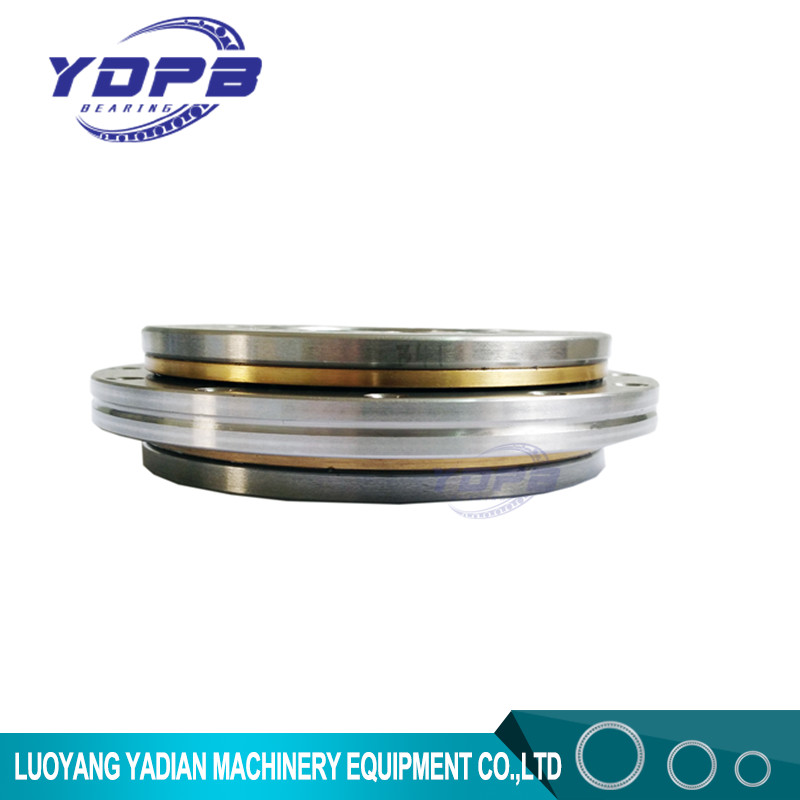

  • YRT-460 turntable bearings manufacturers 460X600X70mm custom made
Place of Origin Luoyang，China
Nombre de la marca YDPB
Certificación ISO
Model Number YRT-460
Minimum Order Quantity 1PCS
Precio 260$~~440$/pc
Packaging Details plastic film+waterproof paper+thin foam+wooden case
Delivery Time within 5-8days
Payment Terms Western Union, T/T, MoneyGram
Supply Ability 800pcs/month

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Material Gcr15 Dimension 460X600X70mm
Load Axial Radial combined load Model YRT-460
Application CNC machine tool Cage Brass cage
Precision level P4,P2
Deja un mensaje
Descripción de producto

YRT-460 Hydrostatic Bearing Rotary Table size 460X600X70mm Axial and Radial Load in bearing(Drawing is available if needed)
Model number- YRT-460
Inner ring(mm)- 460
Outer ring(mm)- 600
Width(mm)- 70
Weight(Kg)-45
Fixing Hole(Outer ing)
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring


Main Models
YRT-50 Bearings,YRT-80 bearings,YRT-100 bearings,YRT-120 bearings,YRT-150 bearings,YRT-200 bearings,YRT-260 bearings,YRT-325 bearings,YRT-395 bearings,YRT-460 bearings,YRT-580 bearings,YRT-650 bearings,YRT-850 bearings,YRT-950 bearings,YRT-1030 bearings,YRT-1200 bearings.



Main parameters

Bearing
type		 d
(mm)		 D
(mm)		 H
(mm)		 Screw tightening
torque(Nm)		 Axial dynamic
Load(KN)		 Radial dynamic
Load(KN)		 Weight
(KG)
YRT-50 50 126 30 8.5 38 28.5 1.6
YRT-80 80 146 35 8.5 56 42.5 2.4
YRT-100 100 185 38 8.5 76.5 47.5 4.1
YRT-120 120 210 40 14 102 52 5.3
YRT-150 150 240 40 14 112 56 6.2
YRT-180 180 280 43 14 118 69.5 7.7
YRT-200 200 300 45 14 120 81.5 9.7
YRT-260 260 385 55 34 160 93 18.3
YRT-325 325 450 60 34 300 120 25
YRT-395 395 525 65 34 355 186 33
YRT-460 460 600 70 34 490 200 45
YRT-580 580 750 90 68 490 228 89
YRT-650 650 870 122 116 1040 490 170
YRT-850 850 1095 124 284 1000 455 253
YRT-950 950 1200 132 284 1290 530 312
YRT-1030 1030 1300 145 284 1380 620 375



Related pictures

YRT-460 turntable bearings manufacturers 460X600X70mm custom made 0

YRT-460 turntable bearings manufacturers 460X600X70mm custom made 1

Application
Applications "Product Application
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc"
