YRT395 Rotary Indexing Table Bearings for machine tool China supplier

  • YRT395 Rotary Indexing Table Bearings for machine tool China supplier
  • YRT395 Rotary Indexing Table Bearings for machine tool China supplier
  • YRT395 Rotary Indexing Table Bearings for machine tool China supplier
  • YRT395 Rotary Indexing Table Bearings for machine tool China supplier
  • YRT395 Rotary Indexing Table Bearings for machine tool China supplier
Place of Origin Luoyang，China
Nombre de la marca YDPB
Certificación ISO
Model Number YRT395
Minimum Order Quantity 1PCS
Precio 1$~~440$/pc
Packaging Details plastic film+thin foam+carton
Delivery Time within 5-8days
Payment Terms Western Union, T/T, MoneyGram
Supply Ability 800pcs/month

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Material Gcr15SiMn Dimension 395X525X65mm
Load Axial Radial combined load Model YRT395
Application CNC machine tool Cage Brass cage
Precision level P4,P2
Deja un mensaje
Descripción de producto

YDPB YRT395 Rotary Indexing Table Machines Use Bearings Size 395x525x65mm Bulk YRT rotary Bearing
Model number- YRT395
Inner ring(mm)- 395
Outer ring(mm)- 525
Width(mm)- 65
Weight(Kg)-25
Fixing Hole(Outer ing)
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring



Main parameters

Bearing

Model number

 Boundary dimensions Basic load rating(KN)

Limiting

Speed

(Grease)

Bearing frictional torque

(Nm)

Weight

(kg)

Axial/Radial

Runout

(μm)
Axial load Radial load
d D H H1 C D1 J J1 dynamic static dynamic static
unit: mm Ｃａ Coa Cr Cor r/min
YRT50 50 126 30 20 10 105 63 116 38 158 28.5 49.5 440 2.5 1.6 2
YRT80 80 146 35 23.35 12 130 92 138 56 255 42.5 100 530 3 2.4 3
YRT100 100 185 38 25 12 160 112 170 76.5 415 47.5 120 430 3 4.0 3
YRT120 120 210 40 26 12 184 135 195 102 540 52 143 340 7 5.3 3
YRT150 150 240 40 26 12 214 165 225 112 630 56 170 320 10 6.2 3
YRT180 180 280 43 29 15 244 194 260 118 710 69.5 200 280 12 7.7 4
YRT200 200 300 45 30 15 274 215 285 120 765 81.5 220 260 14 9.7 4
YRT260 260 385 55 36.5 18 345 280 365 160 1060 93 290 200 20 18.3 6
YRT325 325 450 60 40 20 415 342 430 275 1930 120 345 170 40 25 6
YRT395 395 525 65 42.5 20 486 415 505 300 2280 186 655 140 55 33 6
YRT460 460 600 70 46 22 560 482 580 355 2800 200 765 120 70 45 6
YRT580 580 750 90 60 30 700 610 720 490 4250 228 965 80 140 89 10
YRT650 650 870 122 78 34 800 680 830 1040 8000 490 1800 65 200 170 10
YRT850 850 1095 124 80.5 37 1018 890 1055 1000 8650 455 1730 50 300 253 12
YRT950 950 1200 132 86 40 1130 990 1160 1290 11400 530 2040 40 600 312 12
YRT1030 1030 1300 145 92.5 40 1215 1075 1255 1380 12000 620 2650 39 800 375 15

Related pictures

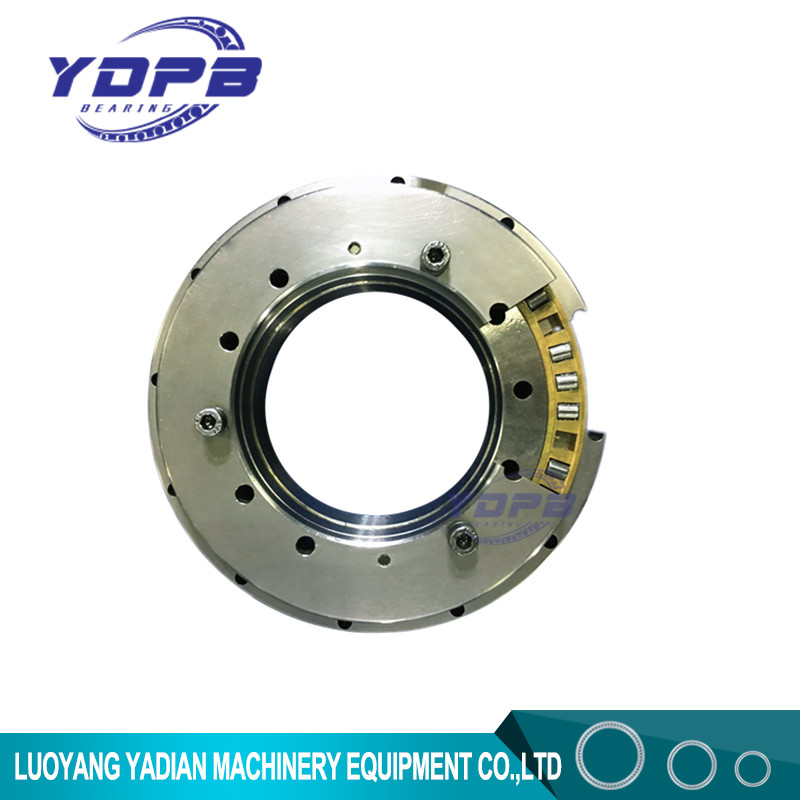

YRT395 Rotary Indexing Table Bearings for machine tool China supplier 0

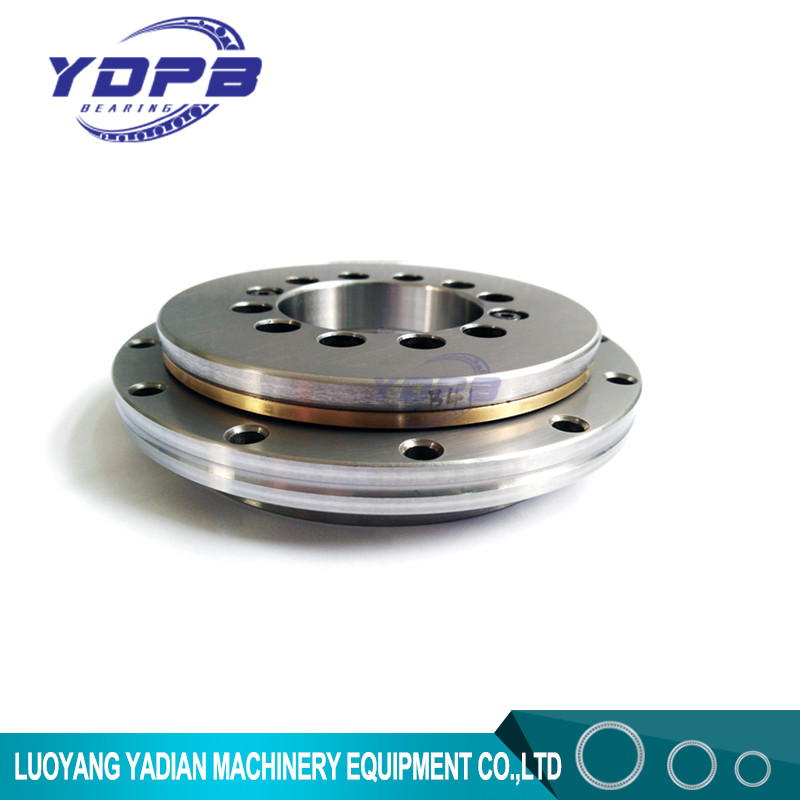

YRT395 Rotary Indexing Table Bearings for machine tool China supplier 1


Application
Applications "Product Application
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc"

Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Transportation available

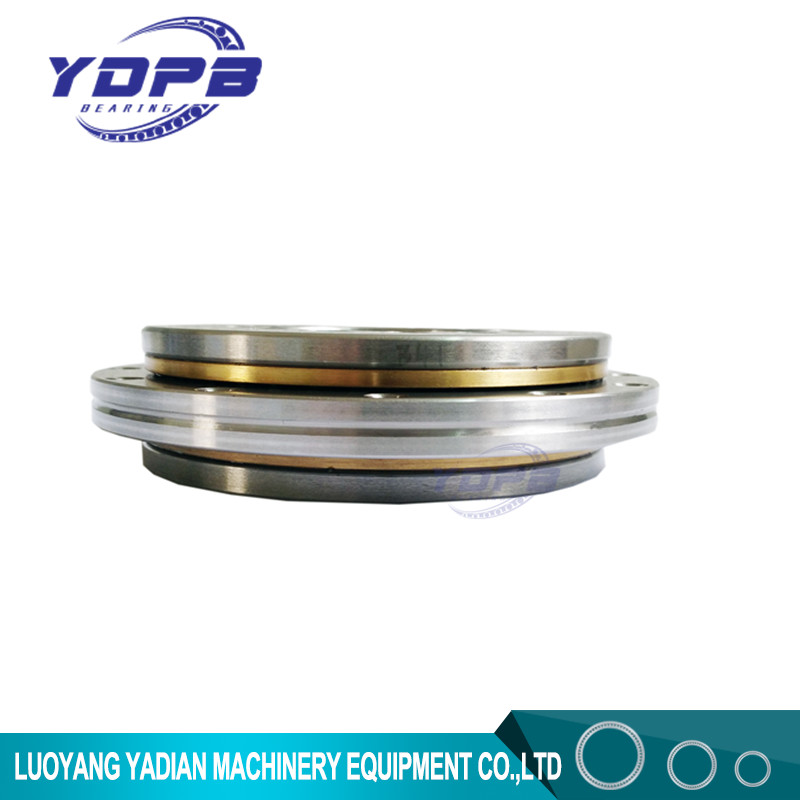

YRT395 Rotary Indexing Table Bearings for machine tool China supplier 2
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
