YRC80 china rotary table bearing manufacturers 80x146x35mm Machine Tools bearings

  • YRC80 china rotary table bearing manufacturers 80x146x35mm Machine Tools bearings
  • YRC80 china rotary table bearing manufacturers 80x146x35mm Machine Tools bearings
  • YRC80 china rotary table bearing manufacturers 80x146x35mm Machine Tools bearings
  • YRC80 china rotary table bearing manufacturers 80x146x35mm Machine Tools bearings
  • YRC80 china rotary table bearing manufacturers 80x146x35mm Machine Tools bearings
Place of Origin Luoyang，China
Nombre de la marca YDPB
Certificación ISO
Model Number YRC80
Minimum Order Quantity 1PCS
Precio 180$~~250$/pc
Packaging Details plastic film+thin foam+carton
Delivery Time within 5-8days
Payment Terms Western Union, T/T, MoneyGram
Supply Ability 1000pcs/month

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Material Gcr15 Dimension 80x146x35mm
Load Axial Radial combined load Model YRC80
Application CNC machine tool Cage Brass cage
Precision level P4,P2
Deja un mensaje
Descripción de producto

YRC80 slewing ring bearing size 80X146X35mm

Structure:Axial and Radial Bearings

Inside diameters:80mm

Outside diameters:146mm

Height:35mm

Weight:2.4kg

Axial and radial runout:3μm



Many more same structure models:

YRC80,YRC100,YRC120,YRC150,YRC180,YRC200,YRC260,YRC325,YRC395,YRC460



Bearing Features:

1. Superior running accurancy,lower operating temperature and reduced noise through P4/P2 Precision class.

2. Easy bearing selection due to direct competitor interchange.

3. Greater Load-carrying capacity and better bearing stiffness control,thanks to closely controlled preload

4. Oil and grease lubrication is available

5.Bore size ranging from 50mm----1200mm



Application area:

Precision rotation working table,manipulator rotate joints,medical machine,measuring equipments etc



Main parameters

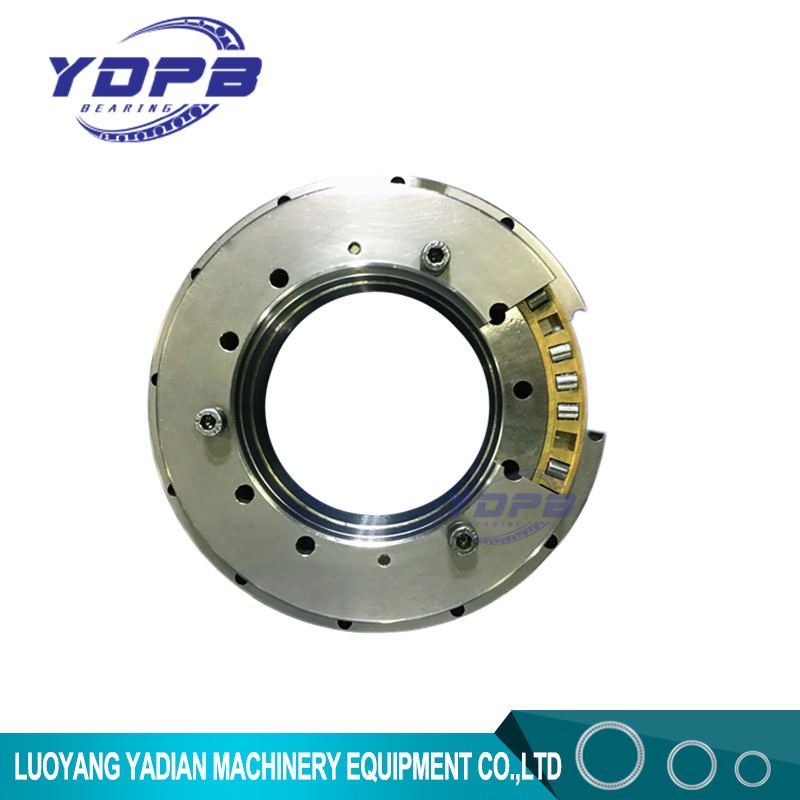

YRC80 china rotary table bearing manufacturers 80x146x35mm Machine Tools bearings 0

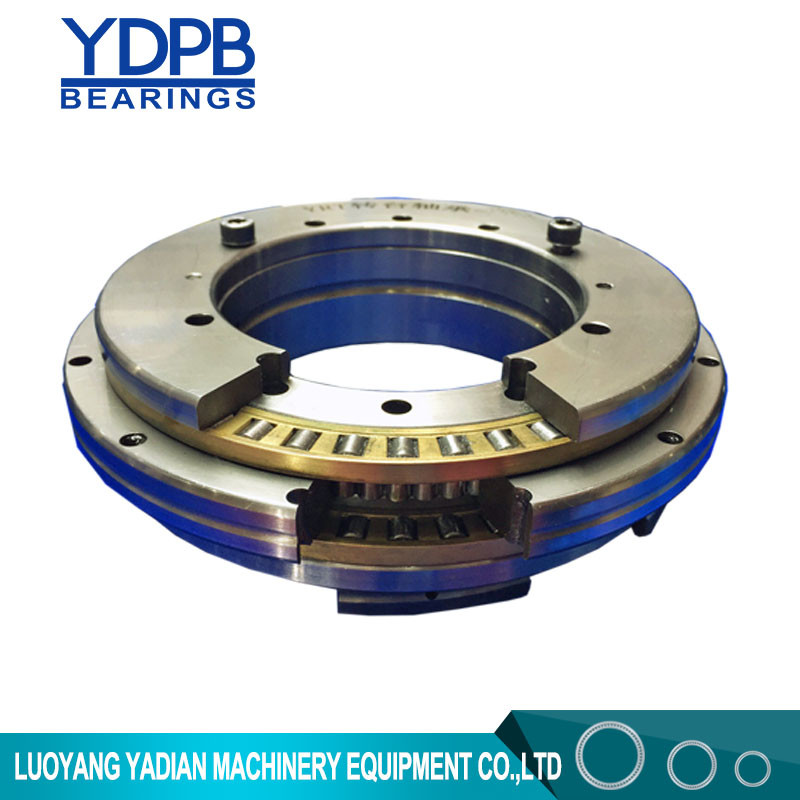

YRC80 china rotary table bearing manufacturers 80x146x35mm Machine Tools bearings 1

Related pictures

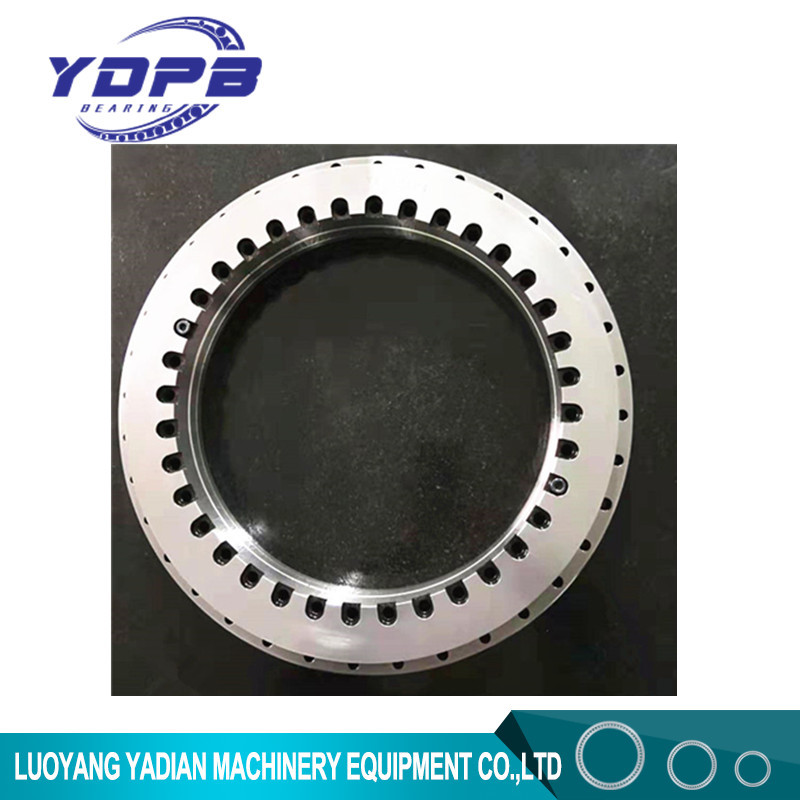

YRC80 china rotary table bearing manufacturers 80x146x35mm Machine Tools bearings 2


Application
Applications "Product Application
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc"

Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
