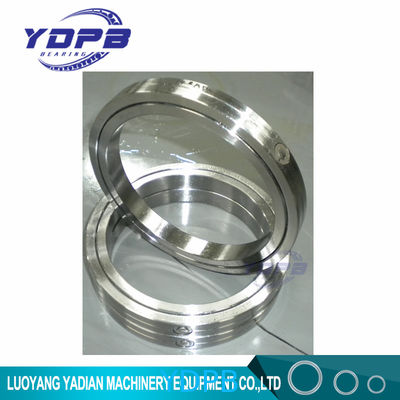

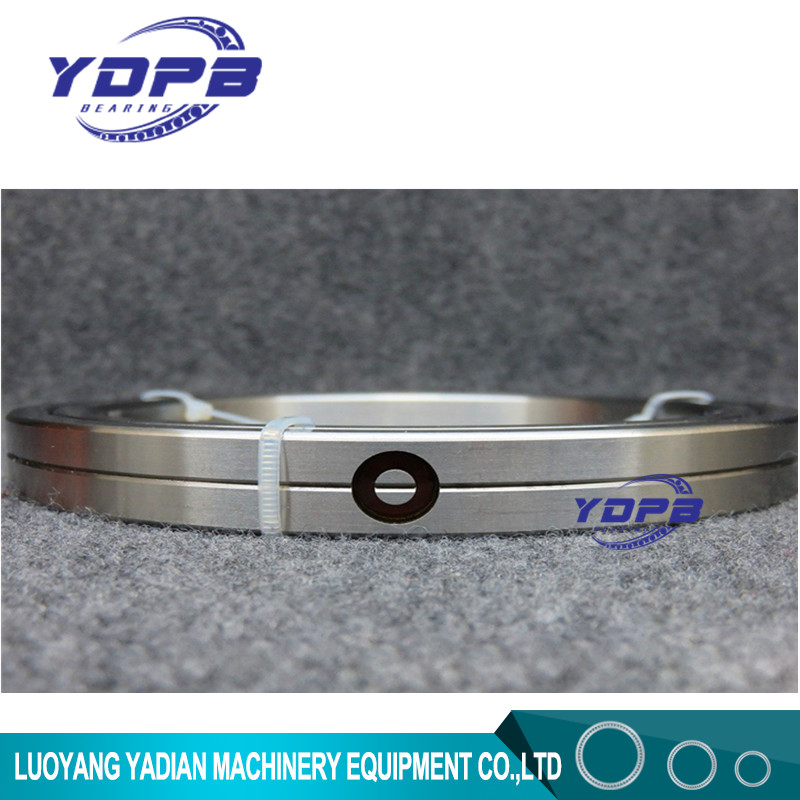

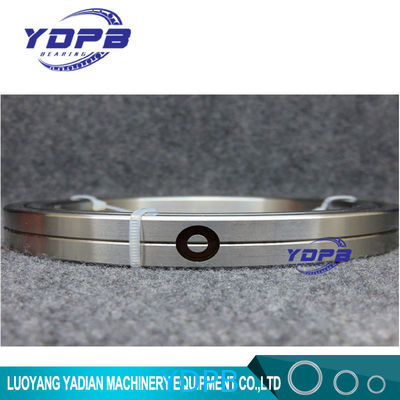

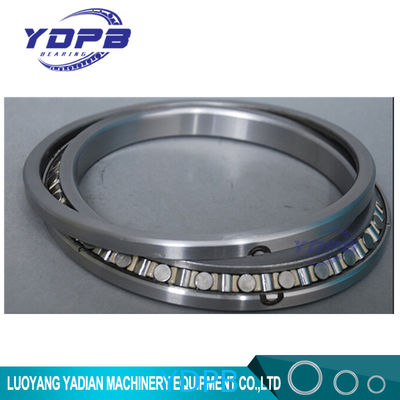

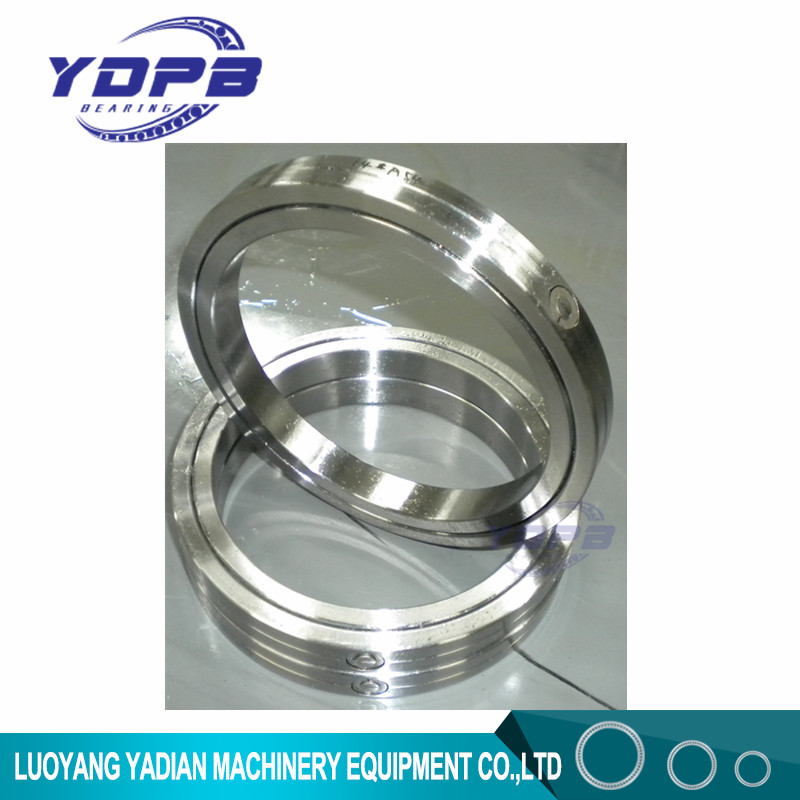

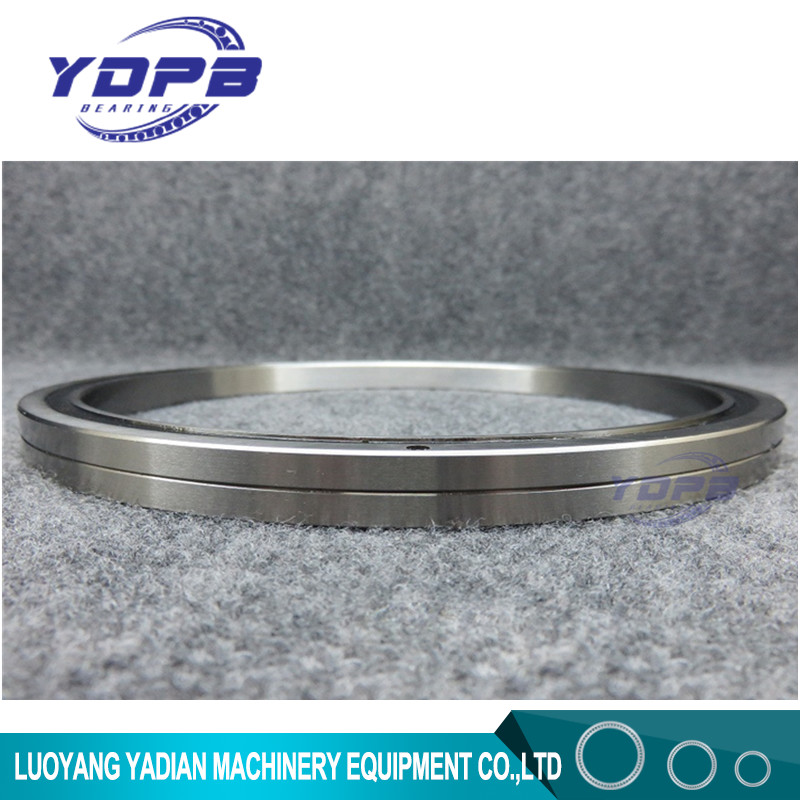

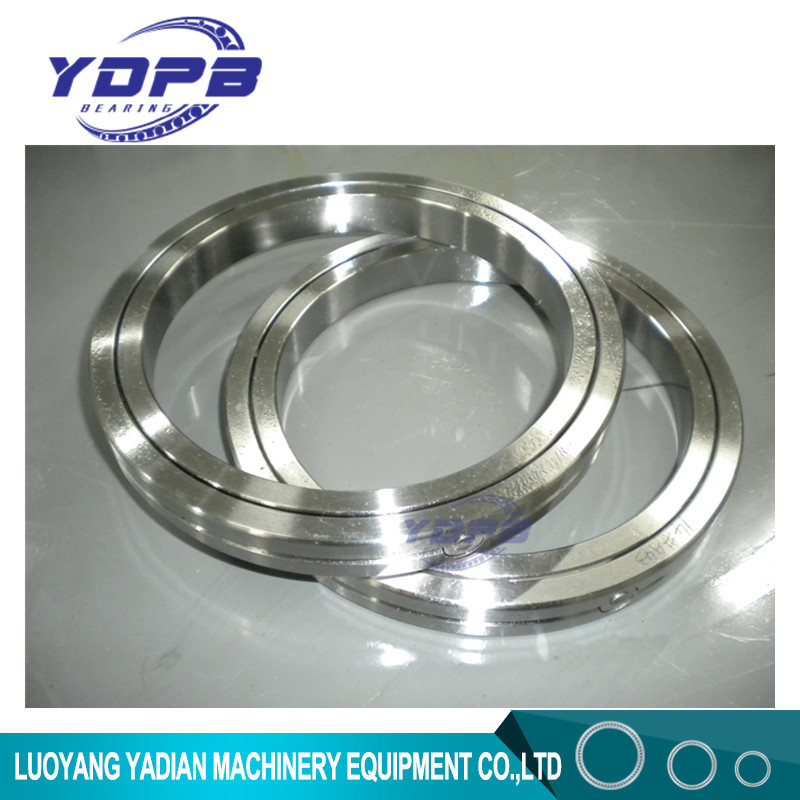

SX011828 x series crossed cylindrical roller bearing price140x175x18mm

  • SX011828 x series crossed cylindrical roller bearing price140x175x18mm
  • SX011828 x series crossed cylindrical roller bearing price140x175x18mm
  • SX011828 x series crossed cylindrical roller bearing price140x175x18mm
  • SX011828 x series crossed cylindrical roller bearing price140x175x18mm
  • SX011828 x series crossed cylindrical roller bearing price140x175x18mm
Place of Origin Luoyang，China
Nombre de la marca YDPB
Certificación ISO
Model Number SX011828
Minimum Order Quantity 1PCS
Precio 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Model SX011828 Material GCr15
Structure Crossed Cylindrical Roller bearings Dimension 140x175x18mm
Application Robots arm/machine tool Name Cross-roller bearing
Deja un mensaje
Descripción de producto

SX011828 Crossed Roller Bearings 140x175x18mm High precision Robotic arm use

Crossed Roller Bearings Parameters

Model number- SX011828

Inner ring(mm)- 140

Outer ring(mm)- 175

Width(mm)- 18

Weight(Kg)- 1.1

Materials- GCR15/GCR15SiMn

Precision grade- P5/P4/P2

Lubrication type- Grease lubrication

Rotating part- Inner Ring Rotation

Load direction- Multi-load

Structure- Outer ring split



Same structure Different sizes models

SX011814 SX011818 SX011820 SX011824 SX011828 SX011832 SX011836 SX011840 SX011848 SX011860 SX011868 SX0118/500



Main parameters

SX011828 x series crossed cylindrical roller bearing price140x175x18mm 0

Identification number Main dimensious shoulder height Basic load rating (axial) Basic load rating (radial) weight
Inner diameter outer diameter Roller pitch circle diameter width Greasing hole r de Di Ca Coa Cr Cor Kg
d D Dp B/B1 S KN KN KN KN
SX011814 70 90 80 10 1.2 0.6 79.5 80.5 18 60 12 30 0.3
SX011818 90 115 102 13 1.2 1 101.5 102.5 26 96 17 47 0.4
SX011820 100 125 112 13 1.2 1 111.5 112.5 28 106 18 52 0.5
SX011824 120 150 135 16 1.5 1 134.4 135.6 41 153 26 75 0.8
SX011828 140 175 157 18 1.5 1.1 156.3 157.7 64 237 41 116 1.1
SX011832 160 200 180 20 1.5 1.1 179.2 180.8 69 272 44 133 1.7
SX011836 180 225 202 22 2 1.1 201.2 202.8 98 381 63 187 2.3
SX011840 200 250 225 24 2 1.5 224.2 225.8 106 425 68 208 3.1
SX011848 240 300 270 28 2 2 269.2 270.8 149 612 95 300 5.3
SX011860 300 380 340 38 2.5 2.1 339.2 340.8 245 1027 156 504 12
SX011868 340 420 380 38 2.5 2.1 379.2 380.8 265 1148 167 563 13.5
SX011880 400 500 450 46 2.5 2.5 449 451 385 1699 244 833 24
SX0118/500 500 620 560 56 2.5 3 558.8 561.2 560 2538 355 1244

44





Drawings and other parameters ,pls contact us free, thanks



Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.


Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
