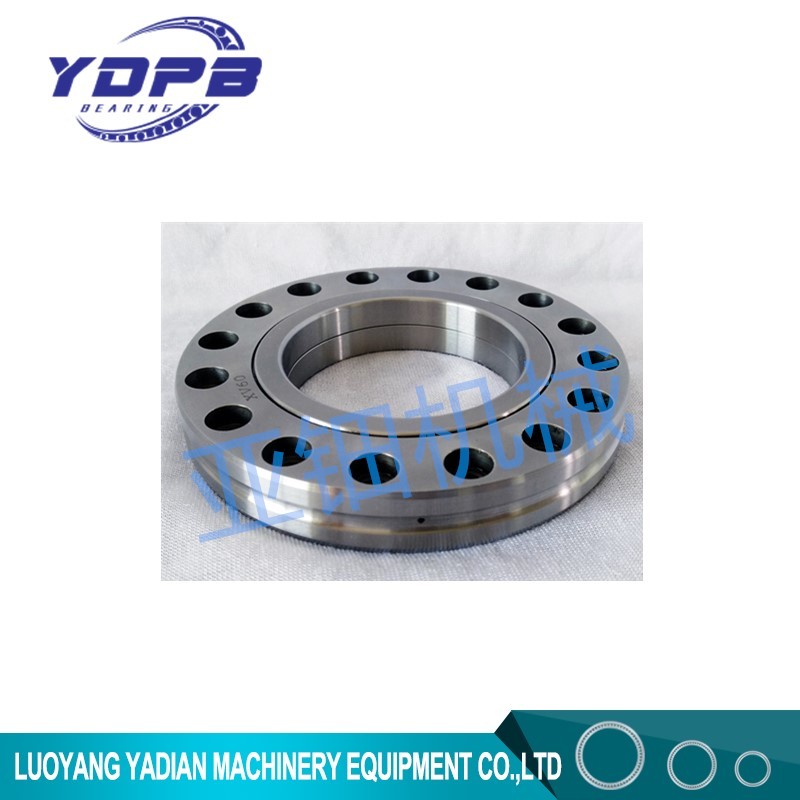

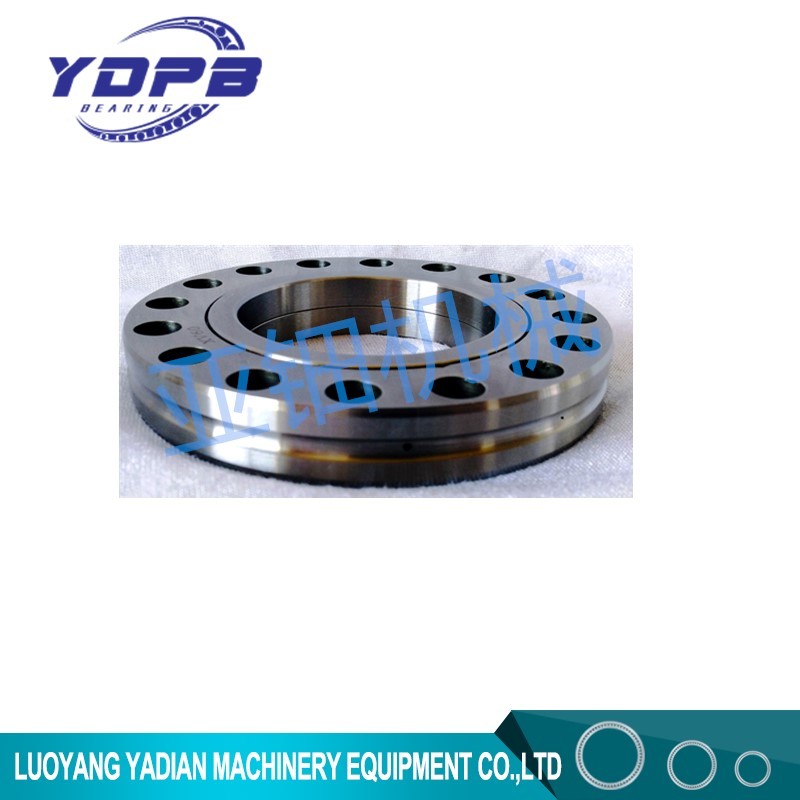

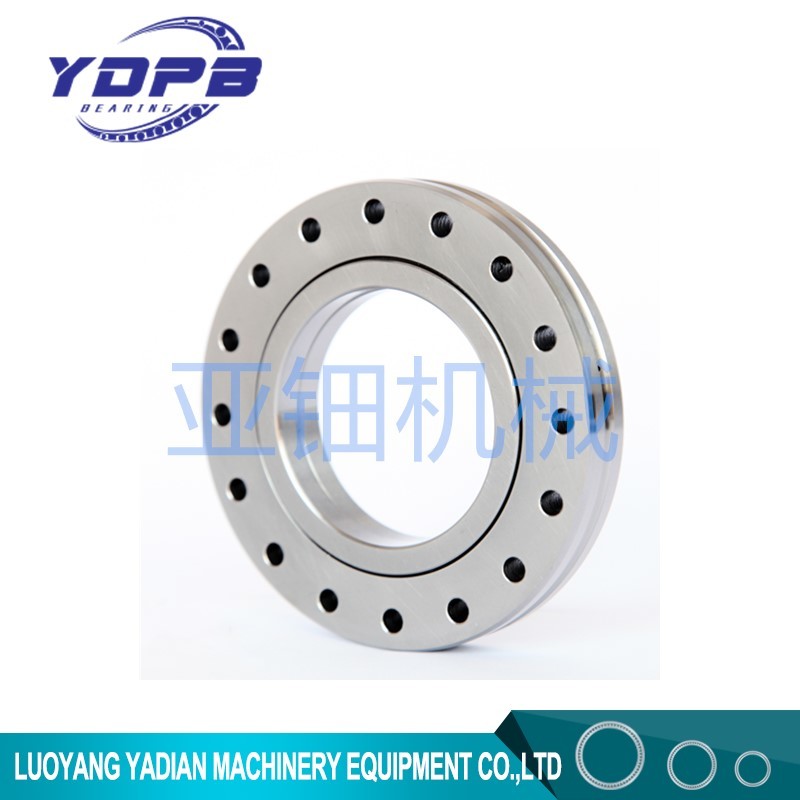

XV90 Thin Section Bearings/Roller Bearing/Slim Bearing 90x145x19/18mm

  • XV90 Thin Section Bearings/Roller Bearing/Slim Bearing 90x145x19/18mm
  • XV90 Thin Section Bearings/Roller Bearing/Slim Bearing 90x145x19/18mm
  • XV90 Thin Section Bearings/Roller Bearing/Slim Bearing 90x145x19/18mm
  • XV90 Thin Section Bearings/Roller Bearing/Slim Bearing 90x145x19/18mm
  • XV90 Thin Section Bearings/Roller Bearing/Slim Bearing 90x145x19/18mm
Place of Origin Luoyang，China
Nombre de la marca YDPB
Certificación ISO
Model Number XV90
Minimum Order Quantity 1PCS
Precio 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Model XV90 Material GCr15
Structure Crossed Cylindrical Roller bearings Dimension 90x145x19/18mm
Application Robots arm/machine tool Name Cross-roller bearing
Deja un mensaje
Descripción de producto

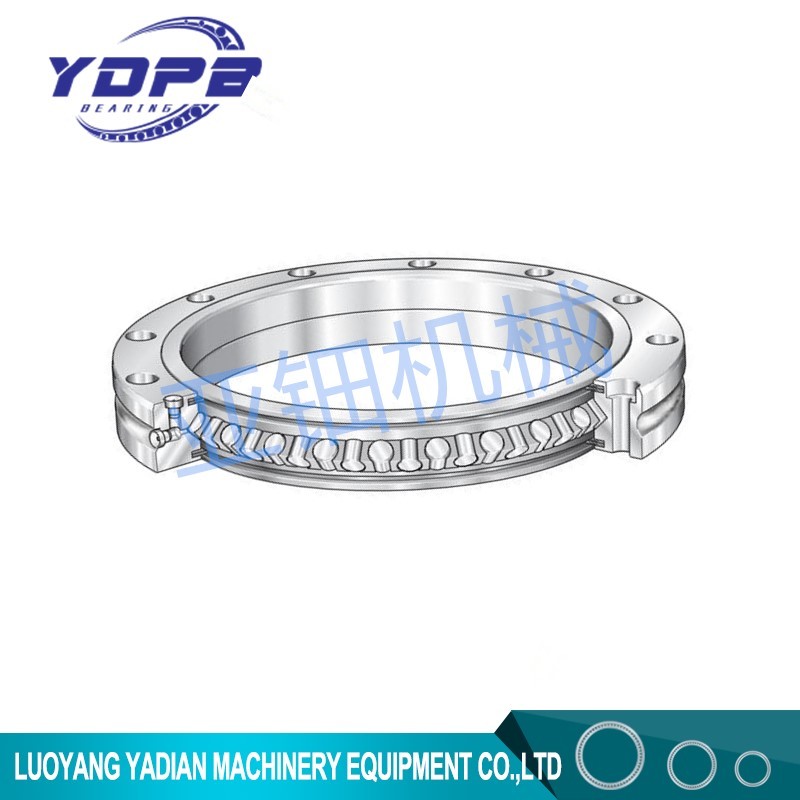

XV series INA standard Crossed Roller slewing ring Bearings, Split inner ring,Sealed on both sides,without gear teeth.
Model number- XV90
Inner ring(mm)- 90
Outer ring(mm)- 145
Width(mm)- 19/18
Weight(Kg)- 1.29
Materials- GCR15/GCR15SiMn
Precision grade- Standard
Lubrication type- Grease lubrication
Rotating part- Inner Ring Split
Series Model NO.
XV30,XV40,XV50,XV60,XV70,XV80,XV90,XV100,XV110.
Features
1. Are screw mounted by means of the outer ring to the adjacent construction,t
2. The inner ring is located by means of a locknut, can be adjusted very precisely to give a specific clearance or preload by means of the locknut.
3. Sealed on both sides,
4. two lubrication nipples radially and two lubrication nipples axially.
5. Working Temperature -25℃-- +80℃
Structure and Parameters:
XV90 Thin Section Bearings/Roller Bearing/Slim Bearing 90x145x19/18mm 0


Model

Dimension
(mm)

Basic load rating
(KN)

Weight
kg

dDBCD1n 1d 1D 1 1T 1rsCrCor
XV303075151460124.684.62X20°7.410.40.37
XV404085151470124.684.62X20°8.713.80.44
XV5050100171685125.6105.42X20°13.121.50.67
XV6060110171695165.6105.42X20°14.425.50.75
XV70701201716105165.6105.42X20°15.1280.84
XV80801351918120166.6116.42X20°21.440.51.18
XV90901451918130166.6116.42X20°22.344.51.29
XV1001001702322150169158.52X20°34.4652.31
XV1101101802322160169158.52X20°36.2722.48

Related Photoes
XV90 Thin Section Bearings/Roller Bearing/Slim Bearing 90x145x19/18mm 1
Drawings and other parameters ,pls contact us free, thanks
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
