XV80 Robotics Bearings-Thin Section Roller Bearings 80x135x19/18mm

  • XV80 Robotics Bearings-Thin Section Roller Bearings 80x135x19/18mm
  • XV80 Robotics Bearings-Thin Section Roller Bearings 80x135x19/18mm
  • XV80 Robotics Bearings-Thin Section Roller Bearings 80x135x19/18mm
  • XV80 Robotics Bearings-Thin Section Roller Bearings 80x135x19/18mm
  • XV80 Robotics Bearings-Thin Section Roller Bearings 80x135x19/18mm
Place of Origin Luoyang，China
Nombre de la marca YDPB
Certificación ISO
Model Number XV80
Minimum Order Quantity 1PCS
Precio 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Model XV80 Material GCr15
Structure Crossed Cylindrical Roller bearings Dimension 80x135x19/18mm
Application Robots arm/machine tool Name Cross-roller bearing
Deja un mensaje
Descripción de producto

XV series INA standard Crossed Roller slewing ring Bearings, Split inner ring,Sealed on both sides,without gear teeth.
Model number- XV80
Inner ring(mm)- 80
Outer ring(mm)- 135
Width(mm)- 19/18
Weight(Kg)- 1.18
Materials- GCR15/GCR15SiMn
Precision grade- Standard
Lubrication type- Grease lubrication
Rotating part- Inner Ring Split
Series Model NO.
XV30,XV40,XV50,XV60,XV70,XV80,XV90,XV100,XV110.
Features
1. Are screw mounted by means of the outer ring to the adjacent construction,t
2. The inner ring is located by means of a locknut, can be adjusted very precisely to give a specific clearance or preload by means of the locknut.
3. Sealed on both sides,
4. two lubrication nipples radially and two lubrication nipples axially.
5. Working Temperature -25℃-- +80℃
Structure and Parameters:
XV80 Robotics Bearings-Thin Section Roller Bearings 80x135x19/18mm 0


Model

Dimension
(mm)

Basic load rating
(KN)

Weight
kg
d D B C D1 n 1 d 1 D 1 1 T 1 rs Cr Cor
XV30 30 75 15 14 60 12 4.6 8 4.6 2X20° 7.4 10.4 0.37
XV40 40 85 15 14 70 12 4.6 8 4.6 2X20° 8.7 13.8 0.44
XV50 50 100 17 16 85 12 5.6 10 5.4 2X20° 13.1 21.5 0.67
XV60 60 110 17 16 95 16 5.6 10 5.4 2X20° 14.4 25.5 0.75
XV70 70 120 17 16 105 16 5.6 10 5.4 2X20° 15.1 28 0.84
XV80 80 135 19 18 120 16 6.6 11 6.4 2X20° 21.4 40.5 1.18
XV90 90 145 19 18 130 16 6.6 11 6.4 2X20° 22.3 44.5 1.29
XV100 100 170 23 22 150 16 9 15 8.5 2X20° 34.4 65 2.31
XV110 110 180 23 22 160 16 9 15 8.5 2X20° 36.2 72 2.48

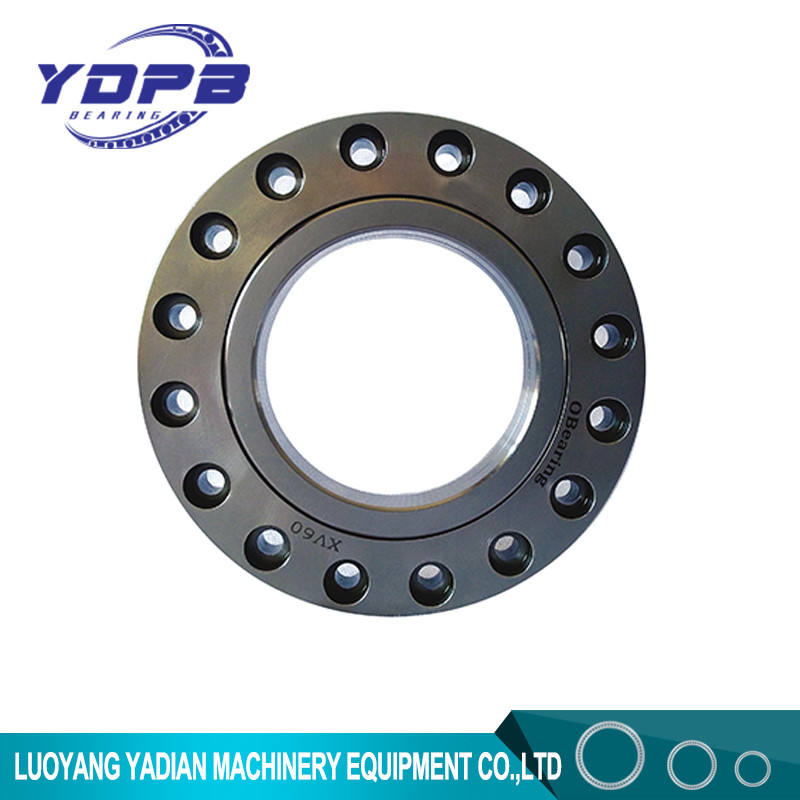

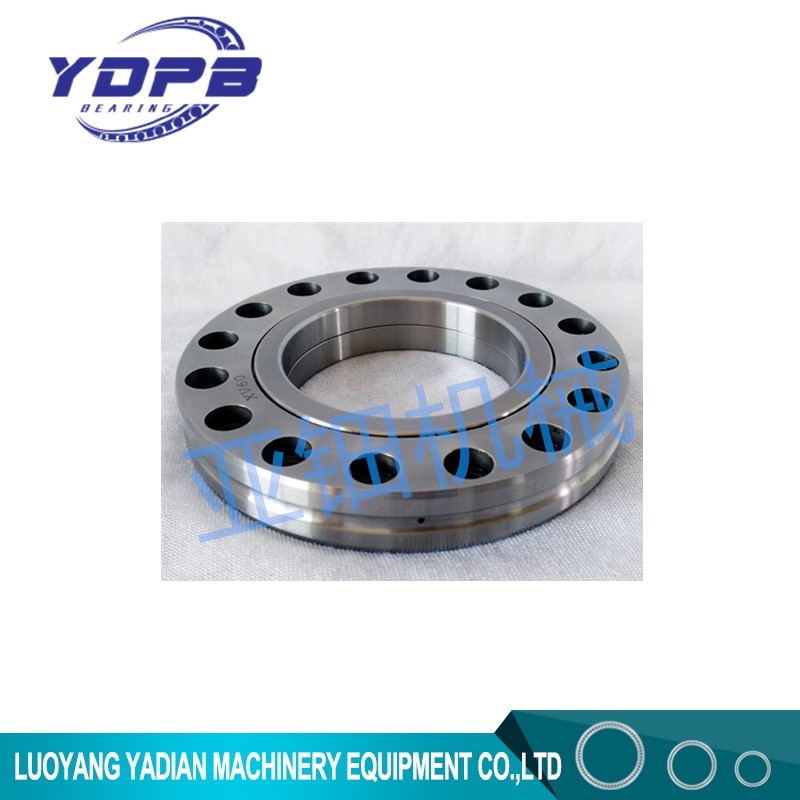

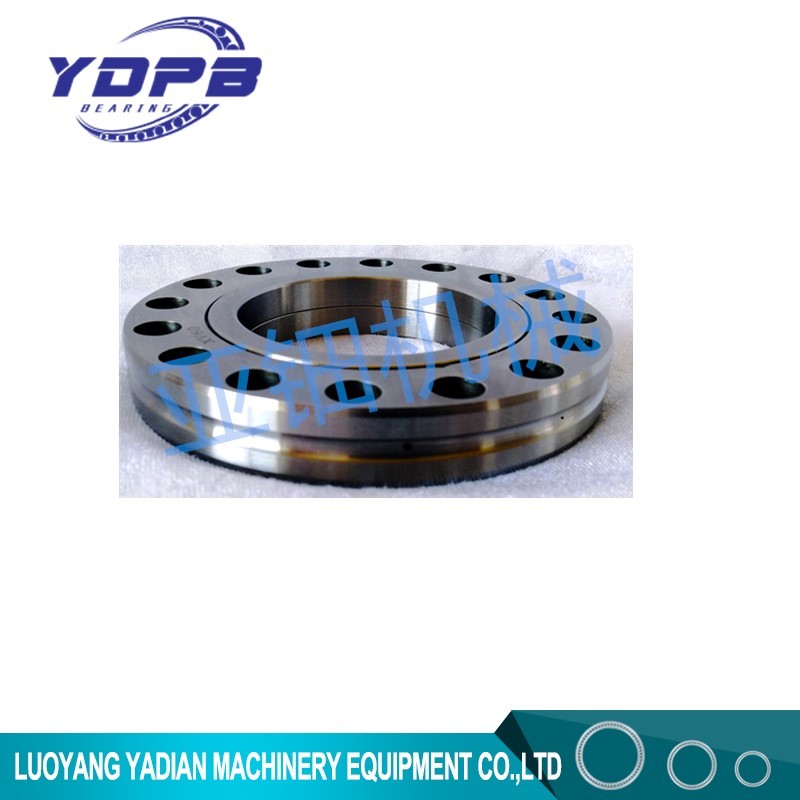

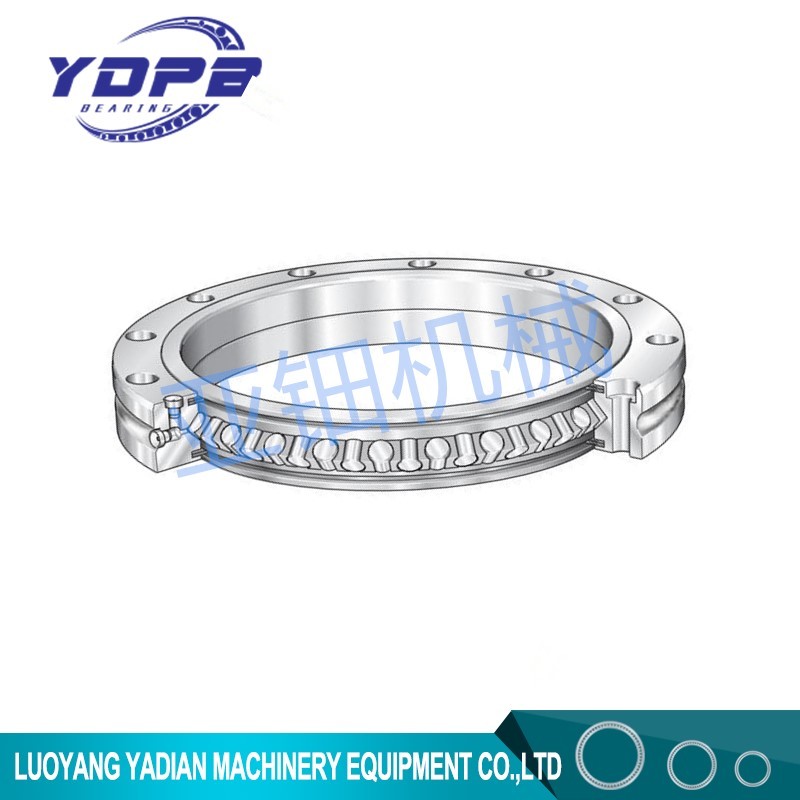

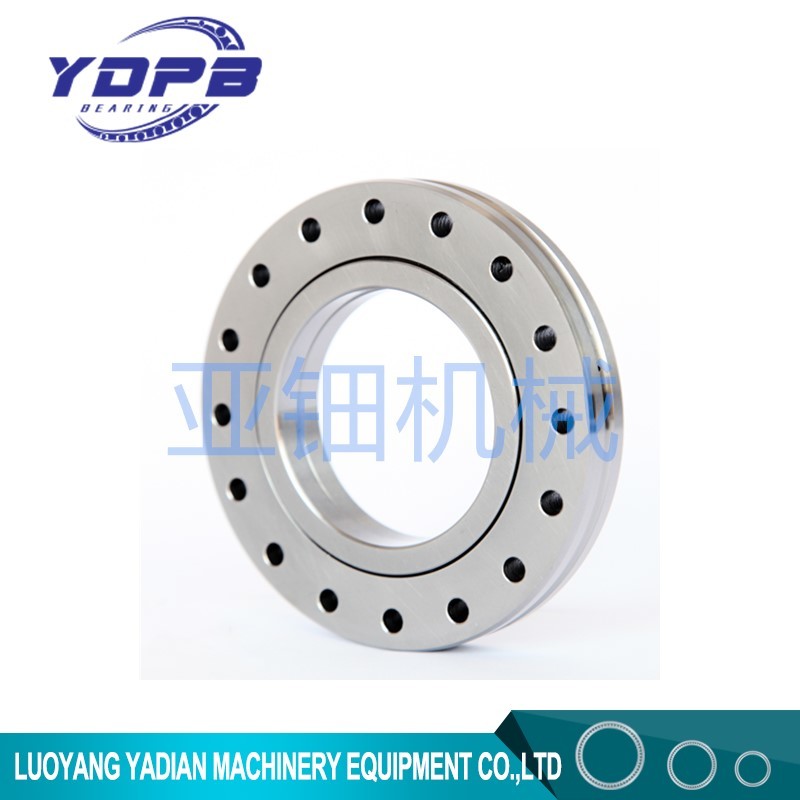

Related Photoes
XV80 Robotics Bearings-Thin Section Roller Bearings 80x135x19/18mm 1
Drawings and other parameters ,pls contact us free, thanks
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
