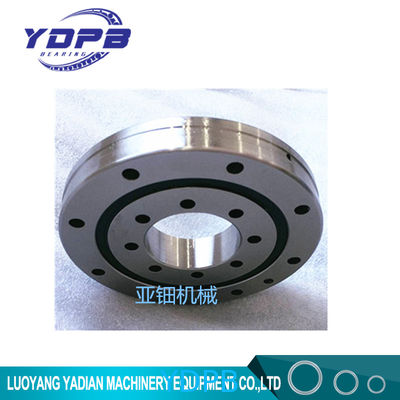

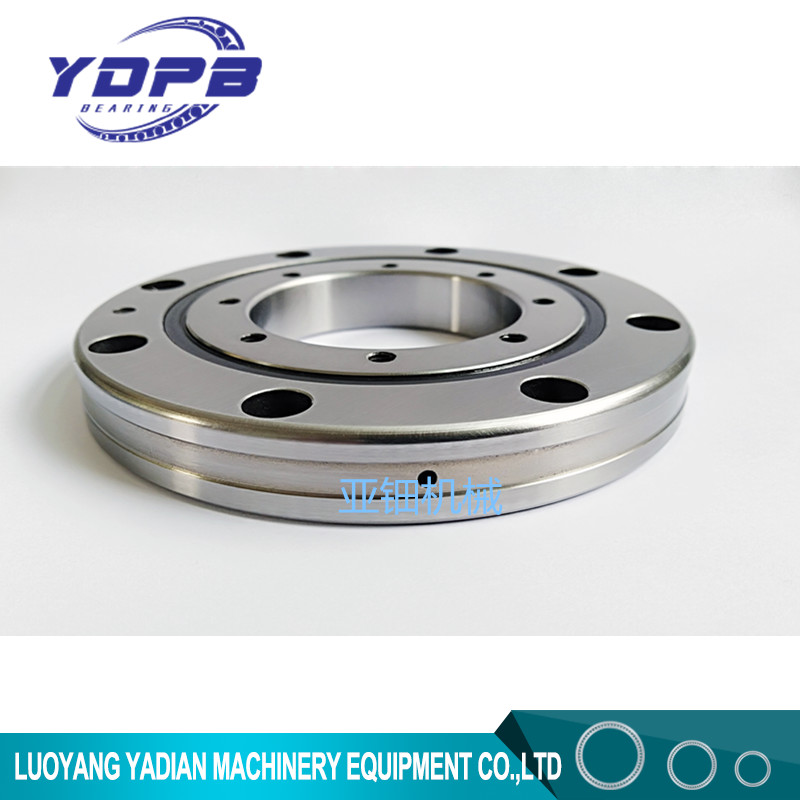

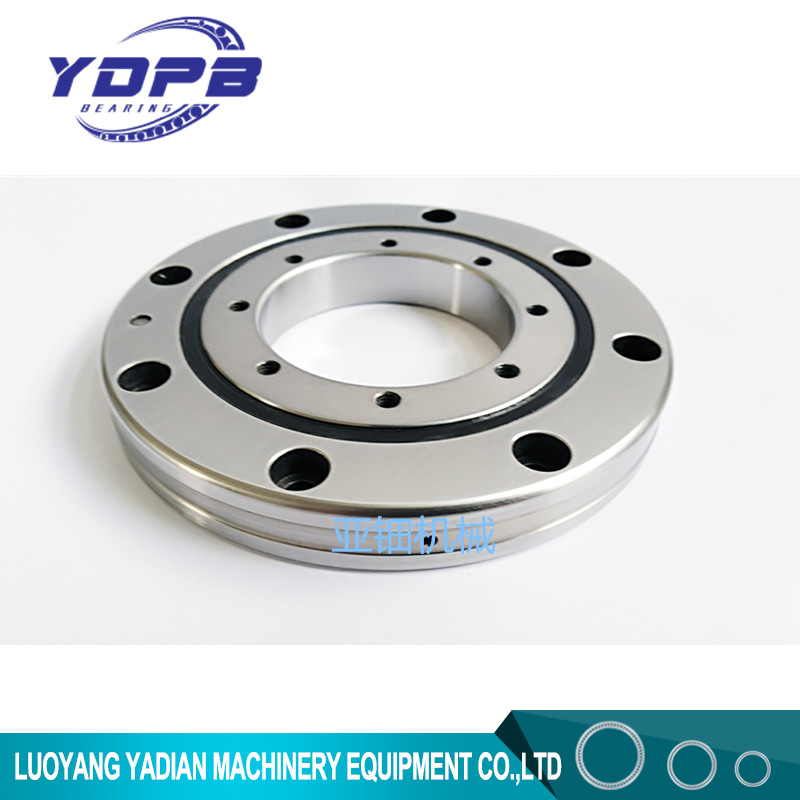

RU85 X (G) UUCC0 P4 china turntable bearings factory 55x120x15mm

  • RU85 X (G) UUCC0 P4 china turntable bearings factory 55x120x15mm
  • RU85 X (G) UUCC0 P4 china turntable bearings factory 55x120x15mm
  • RU85 X (G) UUCC0 P4 china turntable bearings factory 55x120x15mm
  • RU85 X (G) UUCC0 P4 china turntable bearings factory 55x120x15mm
Place of Origin Luoyang，China
Nombre de la marca YDPB
Certificación ISO
Model Number RU 85 X (G) UUCC0 P4
Minimum Order Quantity 1PCS
Precio 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Model RU 85 X (G) UUCC0 P4 Material GCr15
Structure Crossed Cylindrical Roller bearings Dimension 55x120x15mm
Application Robotic arm Name Cross-roller Ring bearing
Deja un mensaje
Descripción de producto



Model number- RU85 X (G) UUCC0 P4
Inner ring(mm)- 55
Outer ring(mm)- 120
Width(mm)- 15
Weight(Kg)- 1
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring
precision level- P4,P2
Seals- can be double side (UU)
Clearance- CC0 or C0


Other models:
RU42,RU66,RU85,RU124(G)(X),RU148(G)(X),RU178(G)(X),RU228(G)(X),
RU297(G)(X),RU445(G)(X)


RU85 X (G) UUCC0 P4 china turntable bearings factory 55x120x15mm 0

shaft diameter Identification number Main dimensious shoulder height Basic load rating (radial) weight
Inner diameter outer diameter Roller pitch circle diameter
width		 Greasing hole∮ Chamfer
R(min)		 ds Dh C Co Kg
d D DP B/B1 KN KN
35 RU66 35 95 66 15 3.1 0.6 59 74 17.5 22.3 0.62
55 RU85 55 120 85 15 3.1 0.6 79 93 20.3 29.5 1
80 RU124(G) 80 165 124 22 3.1 1 114 134 33.1 50.9 2.6
RU124X
90 RU148(G) 90 210 147.5 25 3.1 1.5 133 162 49.1 76.8 4.9
RU148X
115 RU178(G) 115 240 178 28 3.1 1.5 161 195 80.3 135 6.8
RU178X
160 RU228(G) 160 295 227.5 35 6 2 208 246 104 172 11.4
RU228X
210 RU297(G) 210 380 297.3 40 6 2.5 272 320 156 281 21.3
RU297X
350 RU445(G) 350 540 445.4 45 6 2.5 417 473 222 473 35.4
RU445X

Features of RU series robotics bearings
1.Can bear comprehensive load e.g radial ,axial and overturn load .
2.Thin section bearings save installation space
3.High rotary positioning precision
4.Application area:robot arm,revolute joints,chassis etc parts.
More inforamtion ,pls contact us any time ,we will try our best to serive you.


Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
