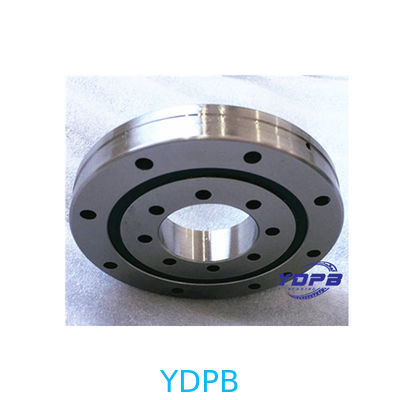

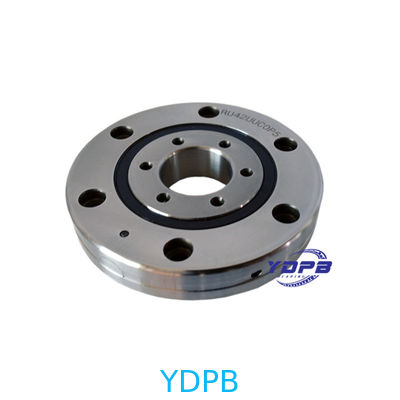

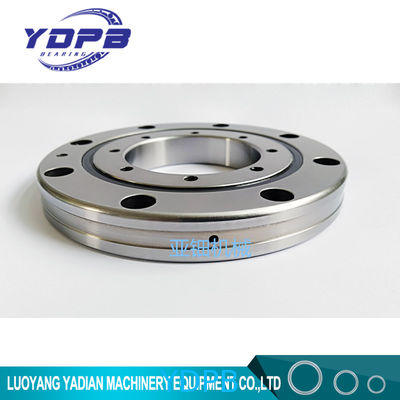

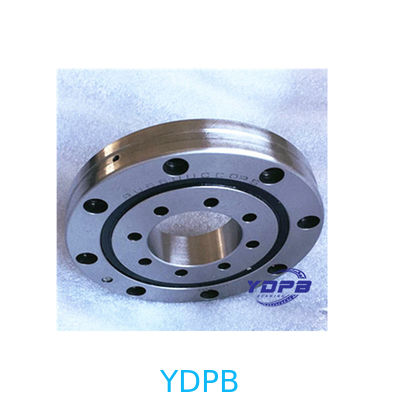

RU148 X (G) UUCC0 P4 Cross Roller Slewing Ring Bearings 90X210X25mm Robots use bearings

  • RU148 X (G) UUCC0 P4 Cross Roller Slewing Ring Bearings 90X210X25mm Robots use bearings
  • RU148 X (G) UUCC0 P4 Cross Roller Slewing Ring Bearings 90X210X25mm Robots use bearings
  • RU148 X (G) UUCC0 P4 Cross Roller Slewing Ring Bearings 90X210X25mm Robots use bearings
  • RU148 X (G) UUCC0 P4 Cross Roller Slewing Ring Bearings 90X210X25mm Robots use bearings
  • RU148 X (G) UUCC0 P4 Cross Roller Slewing Ring Bearings 90X210X25mm Robots use bearings
Place of Origin Luoyang，China
Nombre de la marca YDPB
Certificación ISO
Model Number RU 148 X (G) UUCC0 P4
Minimum Order Quantity 1PCS
Precio 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Model RU 148X (G) UUCC0 P4 Material GCr15
Structure Crossed Cylindrical Roller bearings Dimension 90X210X25mm
Application Robots arm Name Cross-roller Slewing Ring bearing
Deja un mensaje
Descripción de producto



Model number- RU148 X (G) UUCC0 P4
Inner ring(mm)- 90
Outer ring(mm)- 210
Width(mm)- 25
Weight(Kg)- 4.9
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring
precision level- P4,P2
Seals- can be double side (UU)
Clearance- CC0 or C0


Other models:
RU42,RU66,RU85,RU124(G)(X),RU148(G)(X),RU178(G)(X),RU228(G)(X),
RU297(G)(X),RU445(G)(X)


RU148 X (G) UUCC0 P4 Cross Roller Slewing Ring Bearings 90X210X25mm Robots use bearings 0

shaft diameter Identification number Main dimensious shoulder height Basic load rating (radial) weight
Inner diameter outer diameter Roller pitch circle diameter
width		 Greasing hole∮ Chamfer
R(min)		 ds Dh C Co Kg
d D DP B/B1 KN KN
35 RU66 35 95 66 15 3.1 0.6 59 74 17.5 22.3 0.62
55 RU85 55 120 85 15 3.1 0.6 79 93 20.3 29.5 1
80 RU124(G) 80 165 124 22 3.1 1 114 134 33.1 50.9 2.6
RU124X
90 RU148(G) 90 210 147.5 25 3.1 1.5 133 162 49.1 76.8 4.9
RU148X
115 RU178(G) 115 240 178 28 3.1 1.5 161 195 80.3 135 6.8
RU178X
160 RU228(G) 160 295 227.5 35 6 2 208 246 104 172 11.4
RU228X
210 RU297(G) 210 380 297.3 40 6 2.5 272 320 156 281 21.3
RU297X
350 RU445(G) 350 540 445.4 45 6 2.5 417 473 222 473 35.4
RU445X



Features of RU series robotics bearings
1.Can bear comprehensive load e.g radial ,axial and overturn load .
2.Thin section bearings save installation space
3.High rotary positioning precision
4.Application area:robot arm,revolute joints,chassis etc parts.

More related products we have in stock
YRTS High speed rotary table bearings ,YRTM with angle measuring system bearings,ZKLDF SERIES ROTARY TABLE BEARING,Crossed roller bearing , Thin section bearing , Turntable bearing , Roller Bearing ,Bearing ,Slewing bearing ,Robotic bearing ,Rotary Table Bearing , YRT Rotary Table Bearing ,Angular Contact Ball Bearing , Ceramic bearings.
