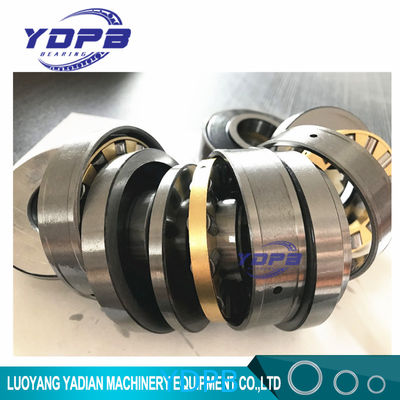

T5AR3278A /M5CT3278A china tandem thrust bearing with shaft supplier

Multi-Stage cylindrical roller thrust bearingsTadem thrust bearings Plastic extruder use.
Model number- T5AR3278A /M5CT3278A
Inner ring(mm)- 32
Outer ring(mm)- 78
Width(mm)- 137
Weight(Kg)- 4.22

Features

Multi Stage cylindrical roller thrust bearings(Tandem bearings) has the characteristics of limited radial space, high axial forces, equal support of all the rows of rollers and long operating life, and is the ideal spindle of parallel screw extruder.
The tandem bearings provided by our institute has the following types: double rows, three rows, four rows, five rows, six rows and eight rows, we also provided bearings with shaft and sleeve barrel. Customers can have their own selections according to center distance of screws, space and load. We also accept the orders of other dimensions.

Main Parameters


Two-Row

Three-Row

Four-Row

Five-Row

Six-Row

Seven-Row

Eight-Row

Application of tandem bearings
When using tandem bearings, the following recommendations should be adhered to:
1. Preload: 1% of the dynamic basic load rating. The dynamic basic load rating of each tandem bearing . Figures not listed will be provided by out institute on request.
2. Radial guidance: full complement cylindrical roller bearings or needle roller bearings can be used.
3. Eliminate tilting: the supporting parts must be machined to eliminate any tilting.
4. Mounting tolerances: recommended the following mounting tolerances: shaft f6 and housing bore F7.
5. Lubrication: tandem bearings must always be lubricated by oil circulation.

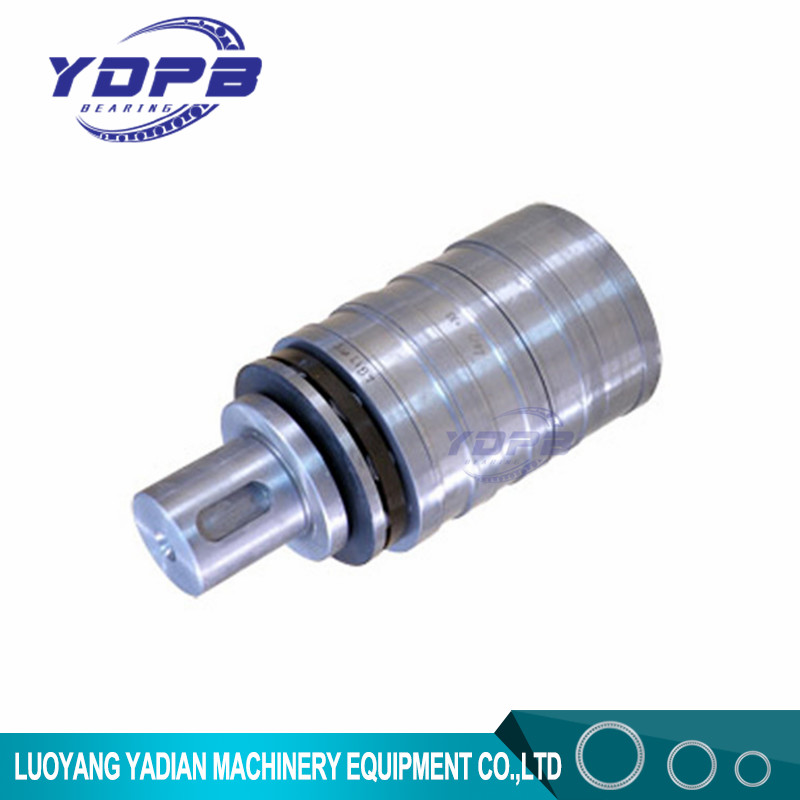

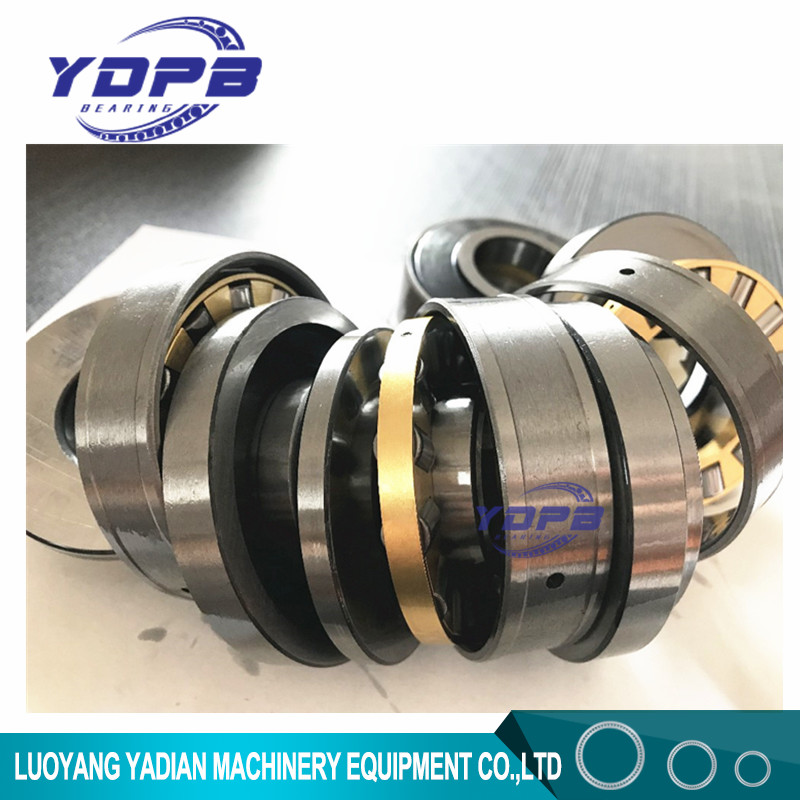

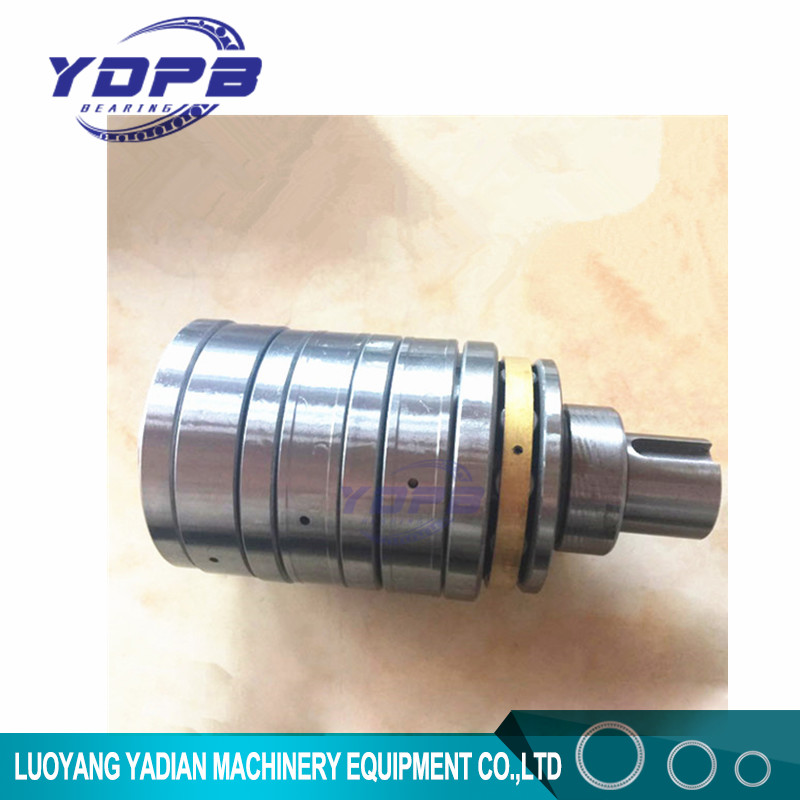

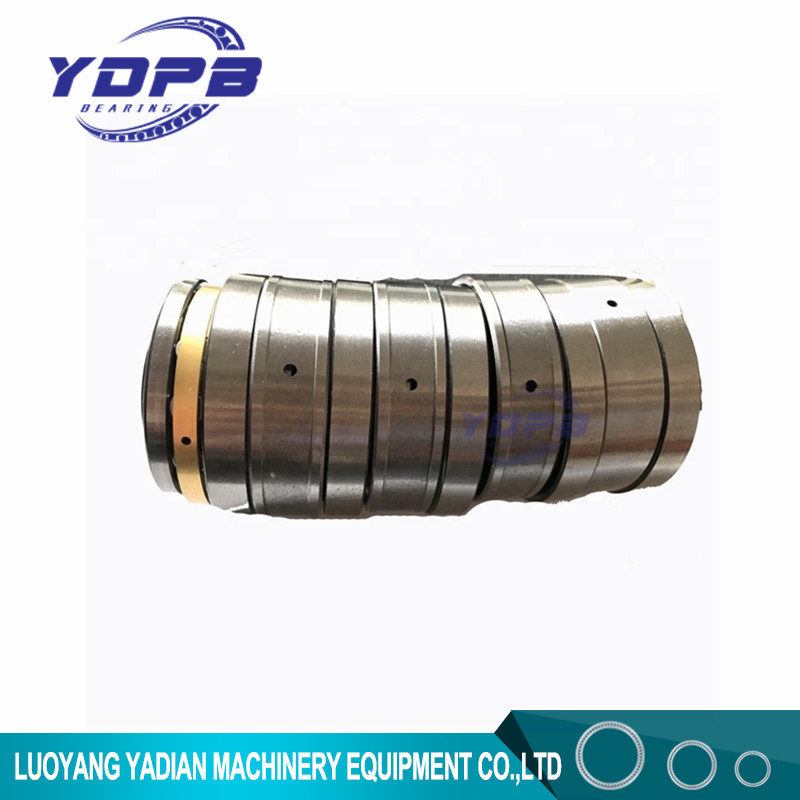

Related Pictures


Transportation available

Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.

Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
