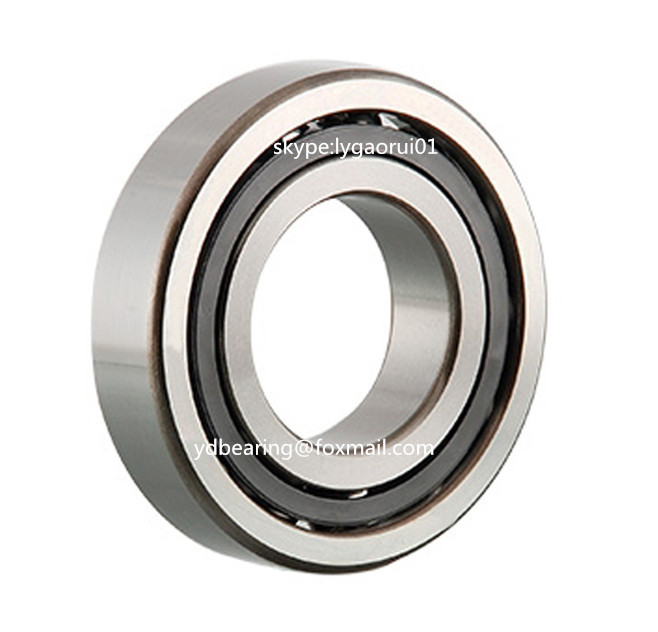

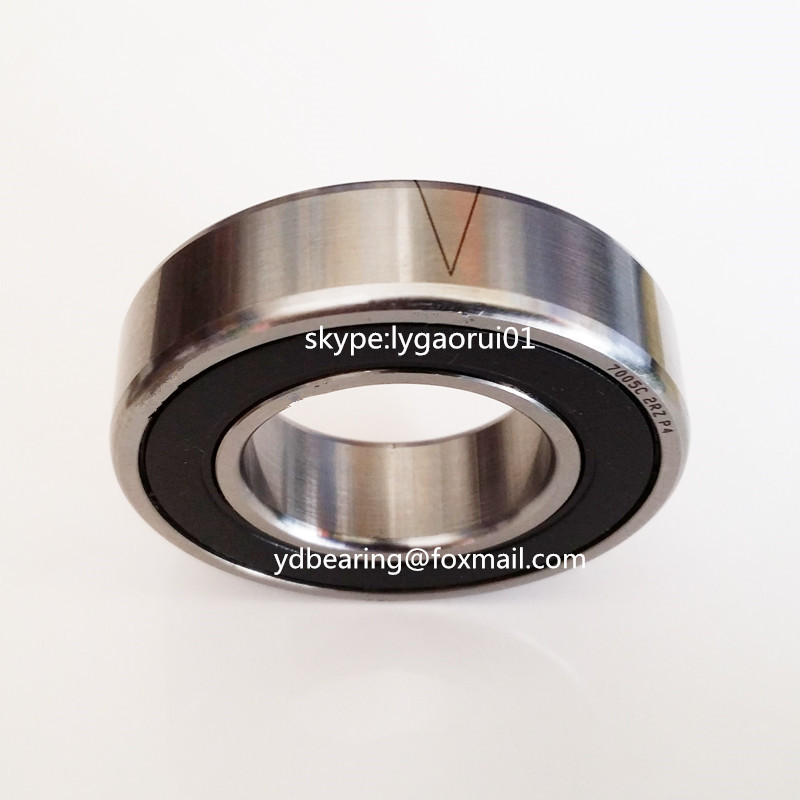

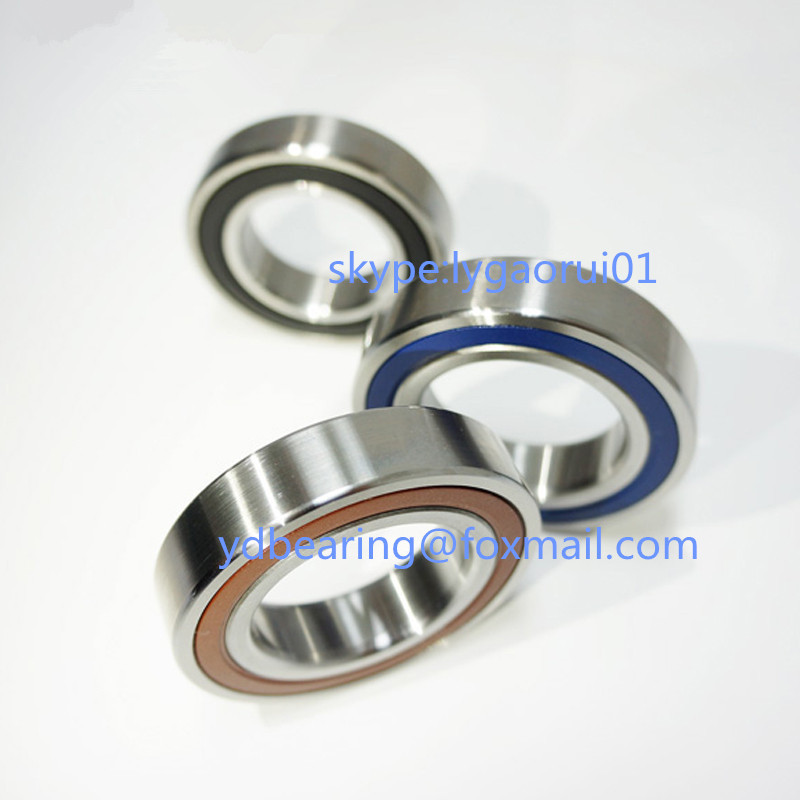

7021C AC T P4A china p4 bearing supplier china precision bearing supplier

  • 7021C AC T P4A china p4 bearing supplier china precision bearing supplier
  • 7021C AC T P4A china p4 bearing supplier china precision bearing supplier
  • 7021C AC T P4A china p4 bearing supplier china precision bearing supplier
Place of Origin Luoyang，China
Nombre de la marca YDPB
Certificación ISO
Model Number 7021C AC T P4A
Minimum Order Quantity 1PCS
Precio 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Model 7021C AC T P4A Material bearing steel
Structure Angular Contact Ball Dimension 105x160xx24mm
Application machine tool spindle Name Angular Contact Ball Bearing
Deja un mensaje
Descripción de producto

7021C AC T P4A Single-row Angular Contact Ball Bearing CNC machine tool Spindle Use105x160x26mm

Structure- Angular Contact ball
Model number- 7021C AC T P4A
Inner ring(mm)- 105
Outer ring(mm)- 160
Width(mm)- 26
Weight(Kg)- 1.58
Materials- Chrome steel/GCR15
Precision grade- P4
Lubrication type- Grease lubrication
Contact Angle- C=15°;AC=25°
Material(Ball)- Steel ball(SUJ2); SN24:Ceramic ball(Si3N4)
Number of Row- Single rows
Material(Cage)- TYN-PA;TR-PF
Combination of mark- SU:Universal combination (single row)
DU:Universal combination (double rows)
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows
Preloaded mark- EL: Micro preloaded
L : Light preload
M : Medium preloade
H : Heavy preloaded

●Features:

Angular contact ball bearing have high limit rotational speed, they can carry radial load and axialload simultaneously, they cal also withstand purely radial load. The axial load carrying capacity dependson the magnitude of contact angle and increases with increasing contact angle.

●Structure and parameters

7021C AC T P4A china p4 bearing supplier china precision bearing supplier 07021C AC T P4A china p4 bearing supplier china precision bearing supplier 1

Bearings Demension mounting dimensions Loading Limit speed Prelaoding Fao axial rigidity Ra Weight
d D B ramin r1min da Da/Db ra rb Cr Cor Lub.  Oil A(L) B(M) C(H) A(L) B(M) C(H) ≈
mm min max max max kN r/min N N/μm Kg
7004C 20 42 12 0.6 0.15 24.5 37.5 0.6 0.15 9.6 6.3 38000 56000 50 150 300 24 35 44 0.06
7004AC 20 42 12 0.6 0.15 24.5 37.5 0.6 0.15 9.2 6 34000 50000 80 240 480 64 90 113 0.06
7005C 25 47 12 0.6 0.15 29 43 0.6 0.15 12.9 8.7 34000 50000 65 190 380 29 42 53 0.07
7005AC 25 47 12 0.6 0.15 29 43 0.6 0.15 12.3 8.3 30000 45000 105 310 620 77 108 136 0.07
7006C 30 55 13 1 0.3 34.5 50.5 1 0.3 15.7 11.6 28000 43000 80 240 480 35 50 63 0.11
7006AC 30 55 13 1 0.3 34.5 50.5 1 0.3 14.9 10.9 24000 38000 130 390 780 92 128 161 0.11
7007C 35 62 14 1 0.3 40.5 56.5 1 0.3 19.3 17.5 20000 34000 100 300 600 39 56 71 0.15
7007AC 35 62 14 1 0.3 40.5 56.5 1 0.3 18.3 16.6 19000 32000 165 490 980 104 146 183 0.15
7008C 40 68 15 1 0.3 46 62 1 0.3 19.9 19.1 19000 32000 105 310 620 41 59 75 0.19
7008AC 40 68 15 1 0.3 46 62 1 0.3 18.9 18.2 17000 28000 170 510 1020 109 153 193 0.19
7009C 45 75 16 1 0.3 50.5 69.5 1 0.3 26.7 25.3 17000 28000 140 420 840 46 67 85 0.23
7009AC 45 75 16 1 0.3 50.5 69.5 1 0.3 25.4 24.1 16000 26000 320 690 1380 123 172 216 0.23
7010C 50 80 16 1 0.3 55.5 74.5 1 0.3 27.6 27.5 16000 26000 145 430 860 49 71 89 0.25
7010AC 50 80 16 1 0.3 55.5 74.5 1 0.3 26.2 26.2 15000 24000 235 700 1400 130 182 229 0.25
7011C 55 90 18 1.1 0.6 61.5 83.5 1.1 0.6 36.7 37.1 14000 22000 195 580 1160 56 81 103 0.37
7011AC 55 90 18 1.1 0.6 61.5 83.5 1.1 0.6 34.8 35.3 13000 20000 315 940 1880 150 210 264 0.37
7012C 60 95 18 1.1 0.6 66.5 88.5 1.1 0.6 37.8 40 14000 20000 500 600 1200 59 85 108 0.39
7012AC 60 95 18 1.1 0.6 66.5 88.5 1.1 0.6 35.8 38 12000 19000 325 970 1940 158 221 278 0.39
7013C 65 100 18 1.1 0.6 71.5 93.5 1.1 0.6 38.9 42.9 13000 20000 210 630 1260 62 90 114 0.42
7013AC 65 100 18 1.1 0.6 71.5 93.5 1.1 0.6 36.8 40.7 11000 18000 330 990 1900 165 232 292 0.42
7014C 70 110 20 1.1 0.6 77.5 103 1.1 0.6 49.9 55.5 12000 19000 270 810 1620 70 102 129 0.59
7014AC 70 110 20 1.1 0.6 77.5 103 1.1 0.6 47.2 52.7 10000 17000 425 1270 2540 188 263 331 0.59
7015C 75 115 20 1.1 0.6 82.5 108 1.1 0.6 51.3 59.2 11000 18000 248 820 1640 74 106 135 0.62
7015AC 75 115 20 1.1 0.6 82.5 108 1.1 0.6 48.5 56.2 9500 16000 435 1300 2600 197 276 346 0.62
7016C 80 125 22 1.1 0.6 88 117 1.1 0.6 61.6 70.4 10000 17000 330 990 1980 78 113 144 0.83
7016AC 80 125 22 1.1 0.6 88 117 1.1 0.6 58.3 66.9 9000 15000 525 1570 3140 209 294 369 0.83
7017C 85 130 22 1.1 0.6 93 122 1.1 0.6 63.3 75 9500 16000 340 1000 2000 82 119 150 0.87
7017AC 85 130 22 1.1 0.6 93 122 1.1 0.6 59.9 71.3 8500 14000 540 1620 3240 219 307 386 0.87
7018C 90 140 24 1.5 0.6 100.5 130 1.5 0.6 66.9 84 9000 15000 360 1050 2100 89 129 163 1.18
7018AC 90 140 24 1.5 0.6 100.5 130 1.5 0.6 63.2 79.7 8000 13000 570 1710 3420 239 335 421 1.18
7019C 95 145 24 1.5 0.6 104 136 1.5 0.6 79.1 97.6 8500 14000 420 1250 2500 94 137 173 1.2
7019AC 95 145 24 1.5 0.6 104 136 1.5 0.6 74.8 92.7 7500 12000 670 2010 4020 253 354 446 1.2
7020C 100 150 24 1.5 0.6 109 141 1.5 0.6 81.2 103.3 8000 13000 430 1290 2580 98 142 180 1.25
7020AC 100 150 24 1.5 0.6 109 141 1.5 0.6 76.7 98 7000 11000 690 2070 4140 263 370 464 1.25
7021C 105 160 26 2 1 115 150 2 1 93.9 118.2 7500 12000 500 1500 3000 103 149 189 1.58
7021AC 105 160 26 2 1 115 150 2 1 88.8 112.2 7000 11000 800 2400 4800 276 387 487 1.58
7022C 110 170 28 2 1 121 159 2 1 110.4 139.8 7000 11000 590 1750 3500 112 162 205 1.97
7022AC 110 170 28 2 1 121 159 2 1 104.4 132.8 6700 10000 950 2850 5700 299 421 592 1.97
7024C 120 180 28 2 1 131 169 2 1 112.7 148.7 7000 11000 600 1800 3600 116 169 213 2.11
7024AC 120 180 28 2 1 131 169 2 1 106.5 141.1 6700 10000 970 2910 5820 312 438 550 2.11
7026C 130 200 33 2 1 142.5 187.5 2 1 144.8 190.8 6700 10000 750 2200 4400 129 187 236 3.18
7026AC 130 200 33 2 1 142.5 187.5 2 1 136.8 181 6000 9000 1200 3600 7200 346 485 610 3.18
7028C 140 210 33 2 1 152.5 197.5 2 1 148.7 202.6 6000 9000 800 2400 4800 134 194 264 3.37
7028AC 140 210 33 2 1 152.5 197.5 2 1 140.4 192.2 5600 8500 1300 3900 7800 350 505 625 3.37
7030C 150 225 35 2.1 1.1 163.5 211.5 2.1 1.1 168.4 232.5 5600 8500 900 2700 5400 143 207 262 4.1
7030AC 150 225 35 2.1 1.1 163.5 211.5 2.1 1.1 159.1 220.6 5000 7500 1400 4200 8400 384 539 677 4.1
7032C 160 240 38 2.1 1.1 174.5 225.5 2.1 1.1 189.1 264.5 5000 7500 1000 3000 6000 151 220 278 5.07
7032AC 160 240 38 2.1 1.1 174.5 225.5 2.1 1.1 178.6 251 4800 7000 1600 4800 9600 4077 572 719 5.07
7034C 170 260 42 2.1 1.1 188 242 2.1 1.1 205.6 299.3 4800 7000 1100 3300 6600 158 230 291 6.9
7034AC 170 260 42 2.1 1.1 188 242 2.1 1.1 194.2 284 4300 6300 1750 5200 10000 427 600 754 6.9
7036C 180 280 46 2.1 1.1 201.5 259 2.1 1.1 229.5 352.1 4500 6700 1200 3600 7200 172 250 317 9.21
7036AC 180 280 46 2.1 1.1 201.5 259 2.1 1.1 216.8 334.1 4000 6000 1950 5800 11500 465 653 821 9.21
7038C 190 290 46 2.1 1.1 211.5 269 2.1 1.1 235.1 370.8 4300 6300 1300 3800 7600 179 260 328 9.61
7038AC 190 290 46 2.1 1.1 211.5 269 2.1 1.1 222.1 351.8 3800 5600 2000 6000 12000 483 678 852 9.61
7040C 200 310 51 2.1 1.1 220 290 2.1 1.1 289.1 471.4 3800 5600 1600 4800 9600 186 270 342 12.1
7040AC 200 310 51 2.1 1.1 220 290 2.1 1.1 273.1 447.3 3600 5300 2500 7500 75000 504 707 889 12.1

Related Pictures

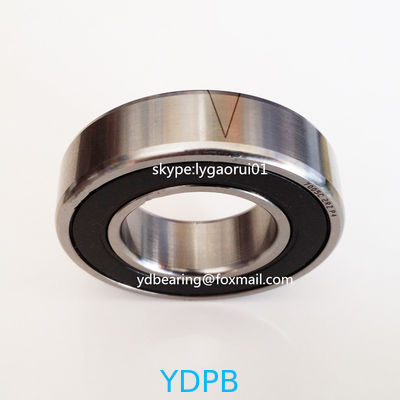

7021C AC T P4A china p4 bearing supplier china precision bearing supplier 2

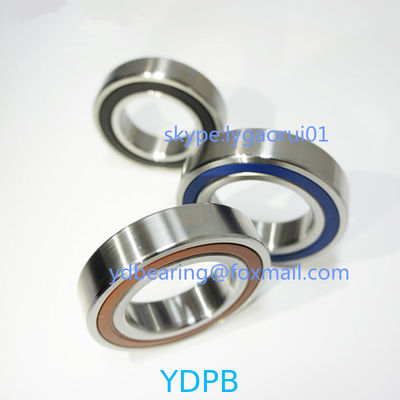

7021C AC T P4A china p4 bearing supplier china precision bearing supplier 3

Drawings and other parameters ,pls contact us free, thanks
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Transportation available
7021C AC T P4A china p4 bearing supplier china precision bearing supplier 4
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
