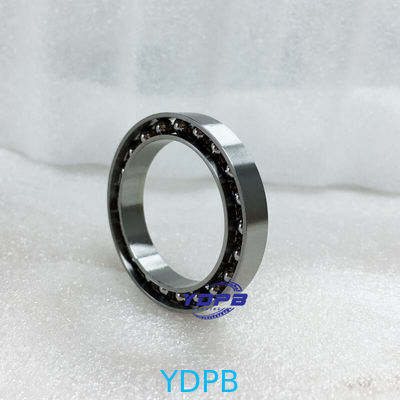

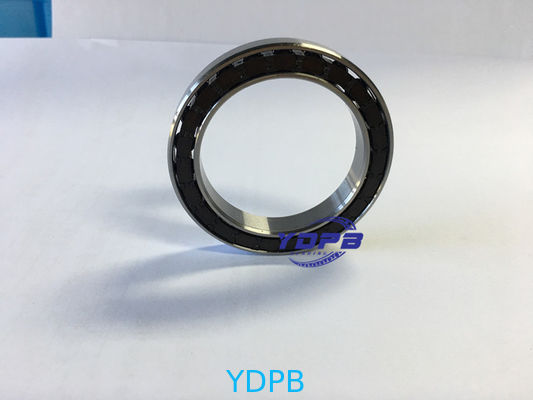

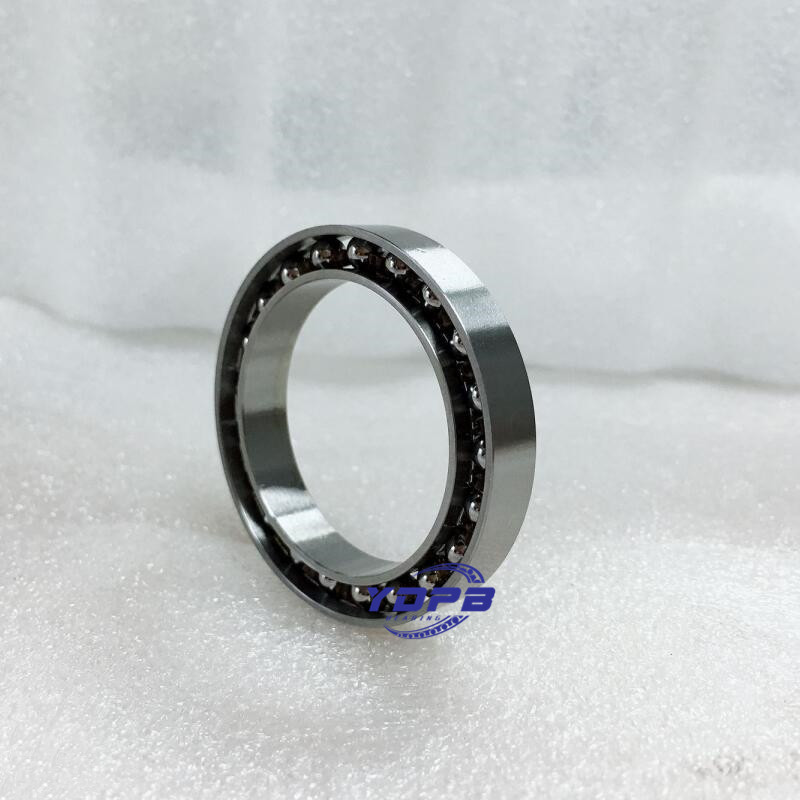

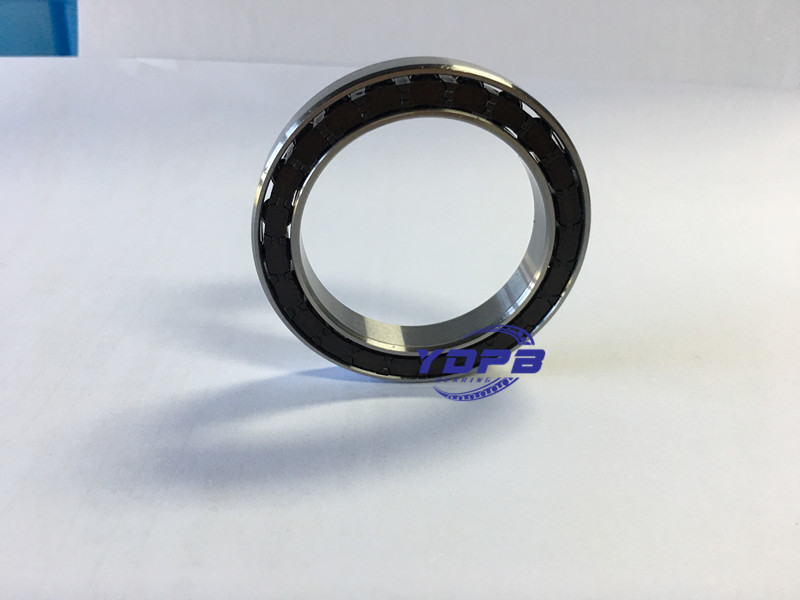

flexible ball bearing custom made 25x33.87x6.1/6.4mm harmonic drive bearing

  • flexible ball bearing custom made 25x33.87x6.1/6.4mm harmonic drive bearing
  • flexible ball bearing custom made 25x33.87x6.1/6.4mm harmonic drive bearing
  • flexible ball bearing custom made 25x33.87x6.1/6.4mm harmonic drive bearing
  • flexible ball bearing custom made 25x33.87x6.1/6.4mm harmonic drive bearing
Place of Origin Luoyang，China
Nombre de la marca YDPB
Certificación ISO
Model Number 25x33.87x6.1/6.4mm
Minimum Order Quantity 1PCS
Precio 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Model 25x33.87x6.1/6.4mm Material GCr15
Structure Ball Bearing Dimension 25x33.87x6.1/6.4mm
Application Robots harmonic drive use Name Harmonic Drive Flexible Bearings Industrial robots Use bearing
Deja un mensaje
Descripción de producto

flexible ball bearing custom made 25x33.87x6.1/6.4mm harmonic drive bearing



Industrial robots bearings

Robot bearing/harmonic drive bearing is a special kind which easily deforms in a reversible way. It has a very thin outer ring which varies from round shape to oval interatively during its working time. easily double sealed bearing designed primarily for application of radial load—deep ball grooves also permit application of thrust load in either direction, often used in conjunction with another bearing.

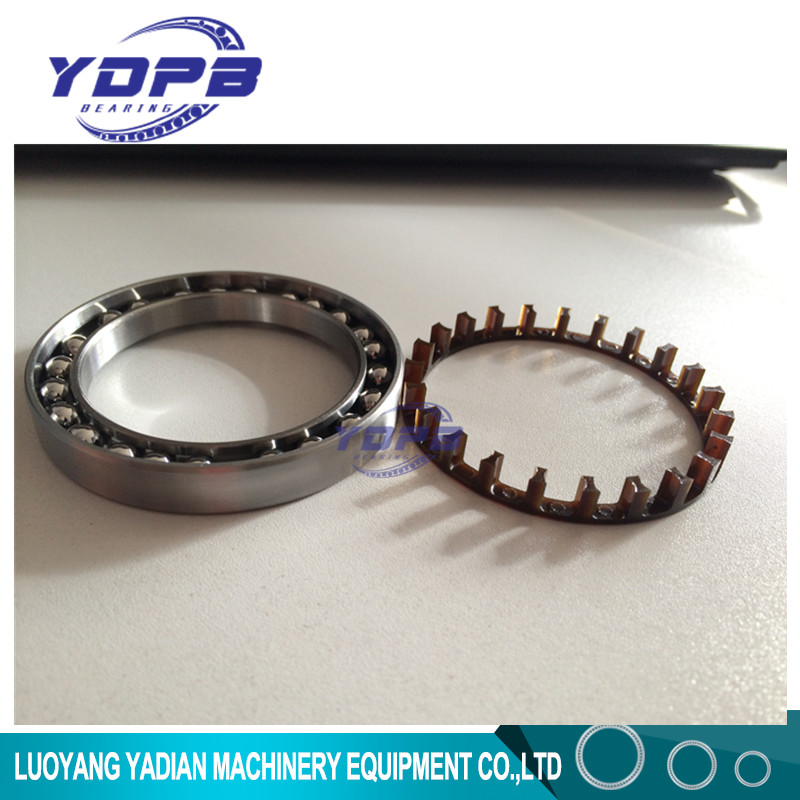

Note: Some bearings we have use new structure( with cage and cover,convenient for you to install)



Other Dimension

Industrial Robots Use Flexible Bearings Regular models

With cage



Model



Outer ring



Inner ring

D

Ball diameter

mm





Ball Qty

Z



Dynamic load rating

Cr



Static load

rating

Cor



Radial Deformation Max. mm



Input

rotate speed r/min

 Output torque N.m



OD



Width B



Id



Width C
E904KAT2 25 4 18.8 4 2.381 23 3.75 3.12 0.2 3000 2
3E905KAT2 32 5 24 5 3.175 23 4.74 3.75 0.2 3000 6
3E806KAT2 40 6 30 6 3.5 23 7.12 5.83 0.3 3000 16
1000907AKIT2 48.2 8 35.8 8 4.5 23 9.93 8.36 0.3 3000 30
3E907KAT2 50 8 37 8 4.763 23 12.63 12 0.3 3000 30
3E809KAT2 60 9 45 9 5.556 23 12.89 11.55 0.4 3000 50
1000809AKIT2 61.8 9.5 45.7 9 5.556 23 12.89 11.55 0.4 3000 50
10008810AKT2 63 9.7 48 9.2 5.556 23 12.89 11.55 0.4 3000 50
1000912AKT2 80 12 60 12 7.144 23 27.19 28.18 0.5 3000 120
F14 33.896 6.095 25.07 6.35 3.175 23 4.74 3.75 0.2 3000 8
F17 41.722 6.16 30.3 6.68 3.969 23 7.12 5.83 0.3 3000 16
F20 49.073 7.24 35.56 8.13 4.763 23 9.93 8.36 0.3 3000 30
F25 61.341 9.015 45.212 6.35 5.556 23 12.89 11.55 0.4 3000 50
F32 79.756 11.81 58.928 8.64 7.5 23 22.28 20.91 0.5 3000 120
M14 33.896 6.095 25.07 6.35 3.175 29 5.53 4.73 0.2 3000 12
M17 41.722 6.16 30.3 6.68 4 28 8.31 7.35 0.3 3000 24
M20 49.073 7.24 35.56 8.13 4 33 12.63 12 0.3 3000 45
M25 61.341 9.015 45.212 6.35 5.556 30 16.4 16.58 0.4 3000 75
M32 79.756 11.81 58.928 8.64 7 31 27.19 28.18 0.5 3000 180

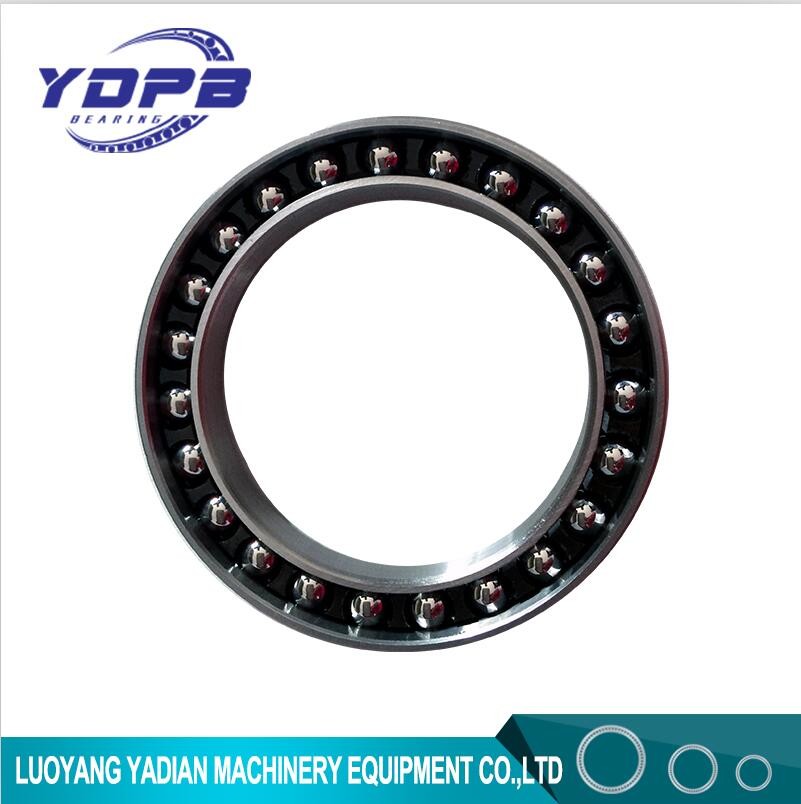

Full balls

M14 Series Dimension dxDXH 25.07x33.896x6.095/6.35mm
M17 Series Dimension dxDXH 30.3x41.722x 6.16/6.68mm
M20 series Dimension dxDXH 35.56x49.073x7.24/8.13mm
M25 series Dimension dxDXH 45.212X61.341X9.015/6.35mm
M32 series Dimension dxDXH 58.928x79.756x11.81/8.64mm



Pls contact us for more dimensions~



Packaging:Bearing+plastic bags+thin plastic foam+Carton box+wooden case



Payment Terms:

Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available

1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
