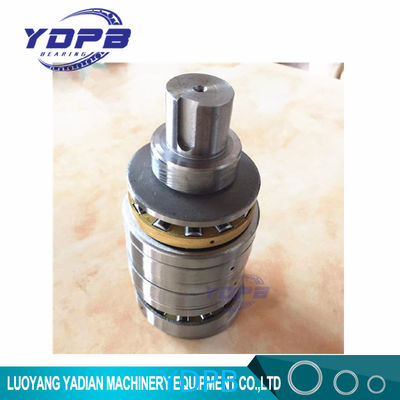

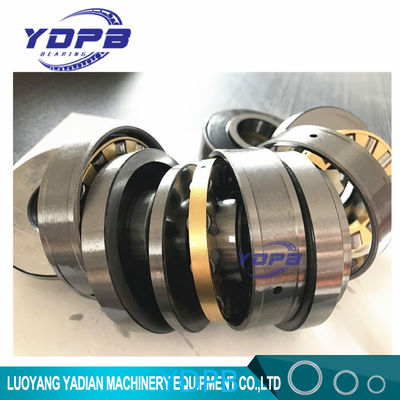

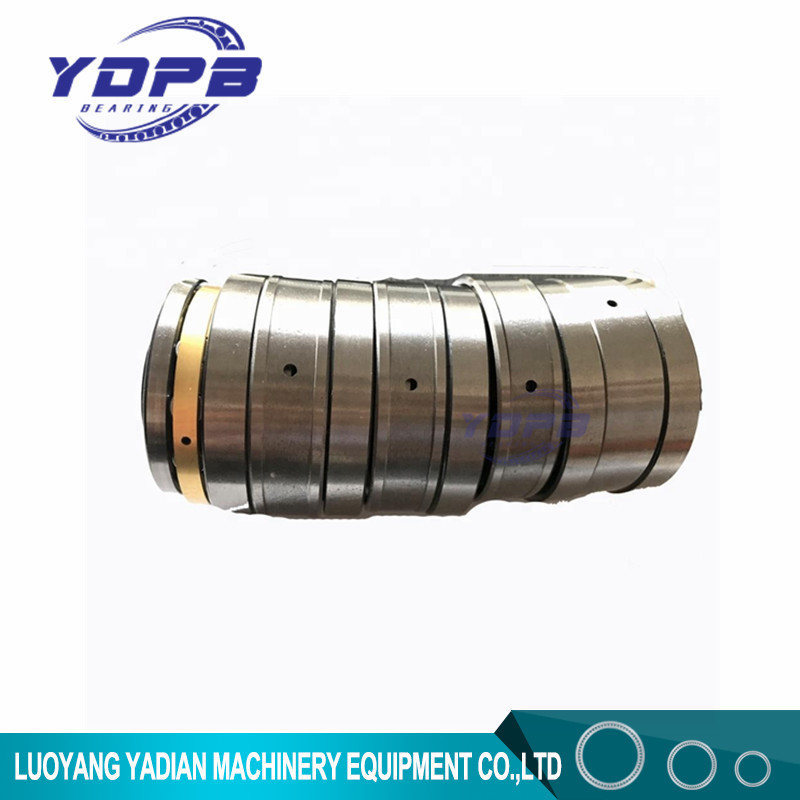

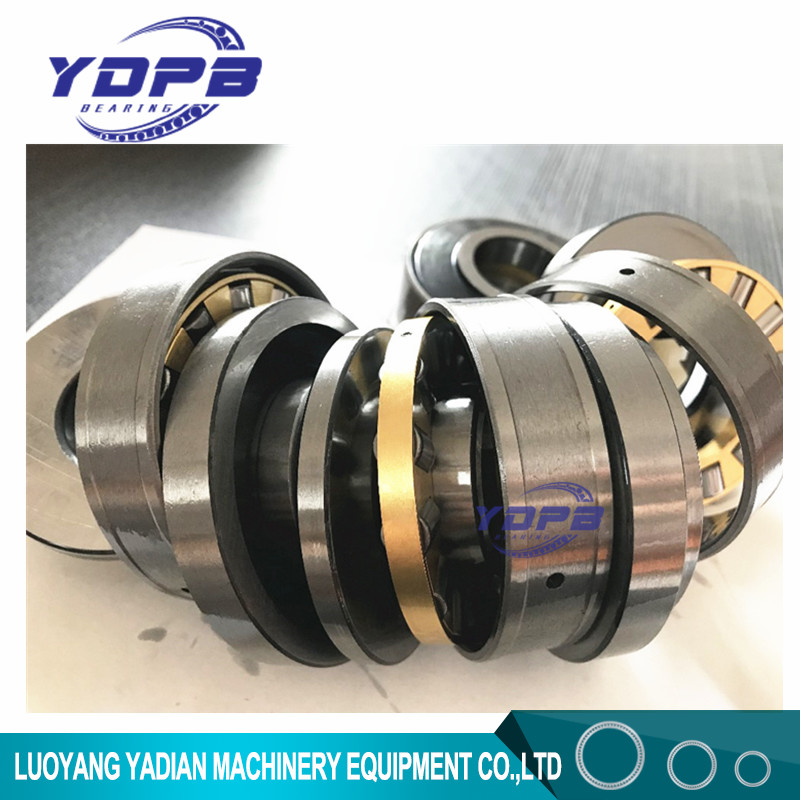

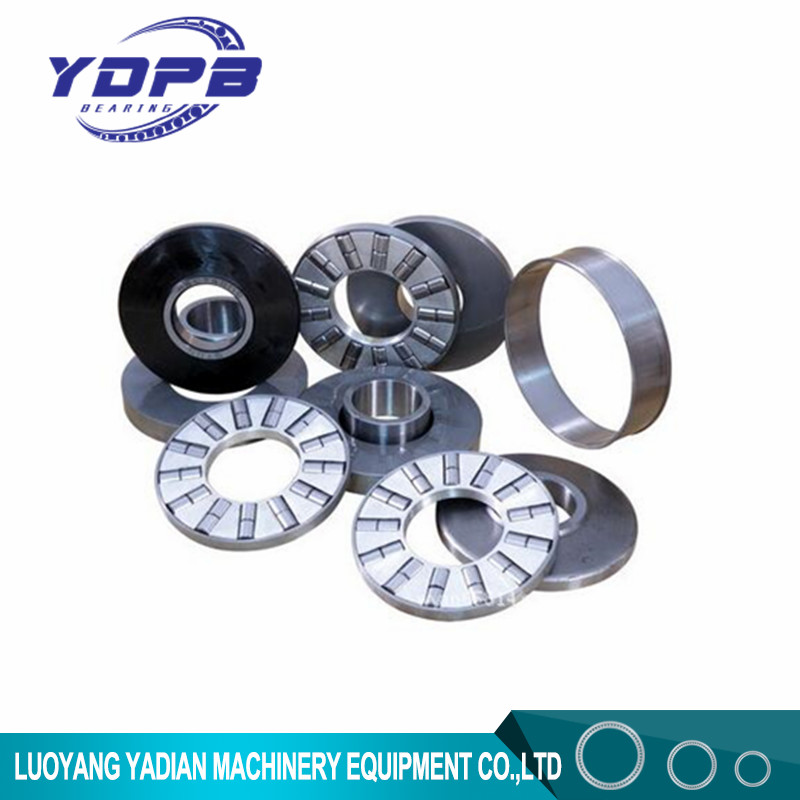

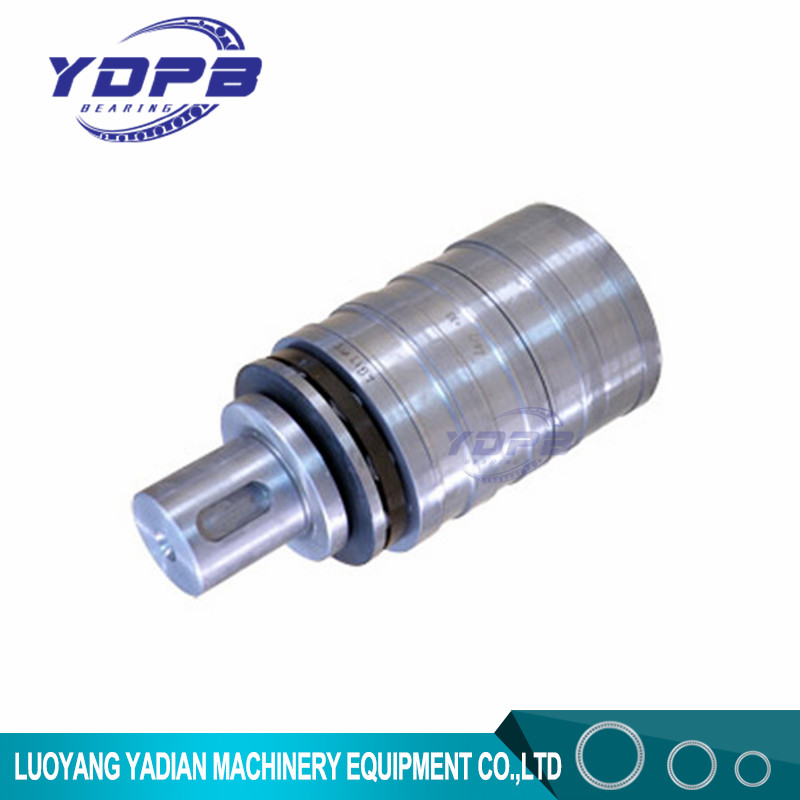

M5CT36120-T5AR36120 Máquina de tracción de tuberías Rodamientos de empuje36x120x197mm China proveedor luoyang

  • M5CT36120-T5AR36120 Pipelay pulling machine Thrust Bearings36x120x197mm China luoyang supplier
  • M5CT36120-T5AR36120 Pipelay pulling machine Thrust Bearings36x120x197mm China luoyang supplier
  • M5CT36120-T5AR36120 Pipelay pulling machine Thrust Bearings36x120x197mm China luoyang supplier
  • M5CT36120-T5AR36120 Pipelay pulling machine Thrust Bearings36x120x197mm China luoyang supplier
  • M5CT36120-T5AR36120 Pipelay pulling machine Thrust Bearings36x120x197mm China luoyang supplier
Place of Origin Luoyang，China
Nombre de la marca YDPB
Certificación ISO
Model Number M5CT36120-T5AR36120
Minimum Order Quantity 1PCS
Precio 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month
Datos del producto
Model M5CT36120-T5AR36120 Material bearing steel
Structure cylindrical roller thrust bearing Dimension 36x120x197mm
Application plastic extruder Name thrus roller bearings
Deja un mensaje
Descripción de producto

M5CT36120-T5AR36120 Máquina de tracción de tendido de tuberías Rodamientos axiales 36x120x197mm Proveedor de China luoyang



Tipo básico Rodamientos axiales de rodillos cilíndricos de varias etapas

M5CT36120-T5AR36120 Máquina de tracción de tuberías Rodamientos de empuje36x120x197mm China proveedor luoyang 0M5CT36120-T5AR36120 Máquina de tracción de tuberías Rodamientos de empuje36x120x197mm China proveedor luoyang 1



Dimensión (mm) Filas Capacidad de carga básica (KN) Peso (Kg) N.º de modelo
d D H H2   Ca Coa   Nuevo antiguo
4 20 32 32 6 14 33 0.053 M3CT420 T3AR420
4 20 54 54 8 26.7 58.3 0.086 M5CT420 T5AR420
4 20 65 65 4 30.8 70 0.106 M6CT420 T6AR420
4 24 62 60 4 48.8 84.5 0.16 M6CT424 T6AR424
4 24 62 60 4 48.8 84.5 0.16 M6CT424X1 T6AR424X1
8 27 52 51 4 35.2 83.6 0.155 M4CT527 T4AR527
8 27 52 51 4 35.2 83.6 0.142 M4CT527E T4AR527E
8 27 65 64 8 44 104.5 0.21 M5CT527 T5AR527
8 27 78 77 4 48.8 125.4 0.22 M6CT527 T6AR527
4 30 88 40 4 57.08 174.24 0.321 M6CT630 T6AR630
4 45 92 92 4 158 373 0.72 M4CT645E T4AR645E
10 37 78 79 4 73 220 0.486 M4CT1037 T4AR1037
10 37 281 99 8 91.3 275 0.487 M5CT1037E T5AR1037E
11 34 52.5 52.5 4 48 124 0.25 M4CT1134 T4AR1134
12 42 62.4 62.4 6 104 240 0.41 M3CT1242E T3AR1242E
12 42 83.5 82.5 4 94 285 0.62 M4CT1242 T4AR1242
12 42 104.6 103 8 182 356 0.75 M5CT1242E T5AR1242E
12 42 104.6 103.6 8 111.7 356 0.776 M5CT1242 T5AR1242
12 42 125.7 124.7 4 134 427.2 0.9 M6CT1242E T6AR1242E
18 58 100.5 101 4 154 582 1.426 M4CT1858 T4AR1858
18 58 82 82 8 270 896 1.61 M5CT1858X2 T5AR1858X2
18 58 126 126.5 8 193 728 1.787 M5CT1858 T5AR1858
18 60 100.5 101 4 175 647 1.62 M4CT1860 T4AR1860
18 66 172 172 4 562 1829 3.3 M6CT1872X2 T6AR1872X2
18 66 172 172.8 4 562 1829 3.51 M6CT1872 T6AR1872
18 80 292.3 292.3 6 4657 2217 6.83 M7CT1880 T7AR1880
18 75 266 266 6 1028 4012 11.43 M7CT18100 T7AR18100
18 75 304 304 6 1175 4586 13.03 M8CT18100 T8AR18100
19 49 67 66.5 6 129 279 0.5 M3CT1949E T3AR1949E
19 49 88.5 88.5 4 230 535 0.74 M4CT1949E T4AR1949E
20 47 78 79 4 360 340 0.67 M4CT2047 T4AR2047
20 47 281 99 8 154 362 0.834 M5CT2047 T5AR2047
20 60 101 101 4 175 647 1.62 M4CT2060 T4AR2060
22 62 110 110 8 270 896 1.78 M5CT2262 T5AR2262
22 62 132 132 4 310 1160 2.1 M6CT2262 T6AR2262
22 64 101 102.5 4 175 610 1.7 M4CT2264 T4AR2264
22 64 101 102.5 4 175 610 1.527 M4CT2264E T4AR2264E
22 64 110 128.5 8 208 763 2.065 M5CT2264 T5AR2264
22 64 110 128.5 8 208 763 1.94 M5CT2264E T5AR2264E
22 64 153 154 4 240 918 2.234 M6CT2264E T6AR2264E
22 64 153 154.5 4 240 918 2.5 M6CT2264 T6AR2264
23 62 105 104.5 4 176 652 1.63 M4CT2362 T4AR2362
23 85 97 96.5 6 223 1236 3.118 M3CT2385 T3AR2385
23 85 129.5 129 4 371 1648 4.152 M4CT2385 T4AR2385
23 85 162 161.5 8 464 2060 5.143 M5CT2385 T5AR2385
23 90 209.75 209.75 4 732 2545 7.75 M6CT2390 T6AR2390
24 90 70 70 6 140.3 617.8 1.4 M3CT2468 T3AR2468
24 90 118 119 8 292 1132 2.32 M5CT2468 T5AR2468
25 52 124 124 4 120 480 1.36 M6CT2552 T6AR2552
25 52 165 165 6 212 750 7.28 M8CT2552 T8AR2552
25 77 134 134 8 350 1402 8.82 M5CT2577 T5AR2577
25 281 134 120 4 350 1402 3.48 M4CT2598 T4AR2598
25 105 150 150 4 575 2033 8.3 M4CT2598 T4AR2598
25 105 234 234 6 932 3659 11.9 M6CT25105 T6AR25105
28 66 273 273 6 1100 4657 13.7 M7CT25105 T7AR25105
28 66 82 81.5 4 223 600 1.054 M3CT2866 T3AR2866
28 66 120 120 4 278 800 1.74 M4CT2866 T4AR2866
28 72 150 106 8 377 1026 3.2 M6CT2872 T6AR2872
28 90 132.5 132.5 6 341 1331 3.199 M5CT2876 T5AR2876
28 90 281 281 6 795 2883 8.82 M8CT2890 T8AR2890
30 90 75 98 4 292.3 608 3.48 M3CT2990 T3AR2990
30 73 95 120 4 193 722 1.79 M4CT3068 T4AR3068
30 73 120 95 4 193 722 2.48 M4CT3073 T4AR3073
30 73 115.5 153 8 226 950 2.255 M4CT3073E T4AR3073E
30 73 115.5 153 8 226 950 3.103 M5CT3073 T5AR3073
30 73 151 153 4 226 950 2.88 M5CT3073E T5AR3073E
30 73 182 184 4 260 1140 3.72 M6CT3073 T6AR3073
30 75 115 115.5 4 264 836 2.29 M4CT3075YB T4AR3075YB
30 110 150.5 151 4 434 1897 11.19 M4CT30100 T4AR30100
30 110 286.5 286.5 6 996 4776 21.7 M6CT30127 T6AR30127
32 78 372 372 2 1294 6748 30.97 M8CT30127 T8AR30127
32 78 57.5 53 4 140 513 2.54 M2CT3278 T2AR3278
32 78 110.5 106 8 279 1026 2.58 M4CT3278 T4AR3278
33 105 137 132.5 6 340 1331 3.22 M5CT3278 T5AR3278
33 105 115 115.5 4 362 1533 5.42 M3CT33105 T3AR33105
34 95 151 151 4 453 2044 7.11 M4CT33105 T4AR33105
34 95 130 130 8 328 1520 5.166 M4CT3495 T4AR3495
34 95 163 163 4 507 1996 6.43 M5CT3495 T5AR3495
34 95 196 196 6 608 2395 7.28 M6CT3495 T6AR3495
34 95 262 262 8 760 3193 1.68 M8CT3495 T8AR3495
38 120 197 197 4 906 3500 11.19 M5CT36120 T5AR36120
38 150 214.5 214.5 4 970 4312 21.7 M4CT38150 T4AR38150
40 110 360 360 6 1410 7100 40.8 M6CT38160 T6AR38160
40 110 123 123 4 404 1812 6.264 M3CT40110 T3AR40110
40 110 164 164 4 723 2907 8.33 M4CT40110 T4AR40110
40 127 177 177 2 636 3185 13.3 M4CT40127 T4AR40127
89 190.5 107.95 107.95 2 1182 4427 14.4 M2CT88.9190.5 T2AR88.9190.5

145

385

233

227

2

3922

16765



147.7M2CT145385
T2AR145385



Características y beneficios

1. Requisitos mínimos de soporte posterior

2. Diseño que ahorra espacio

3. Rodillos rectificados de precisión a juego

4. Retenedor de rodillos mecanizado de latón
