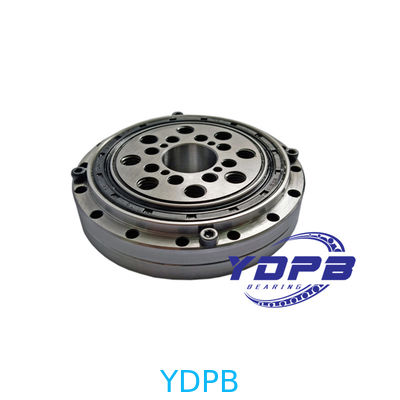

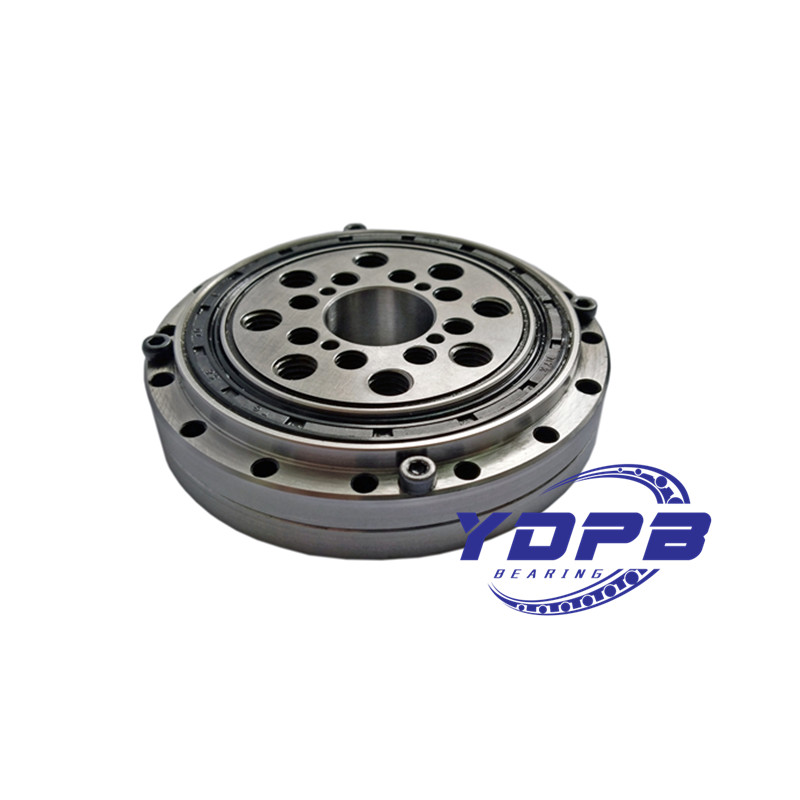

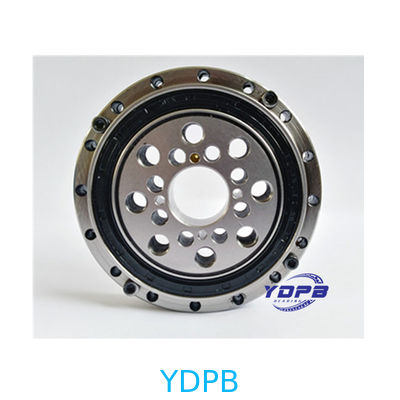

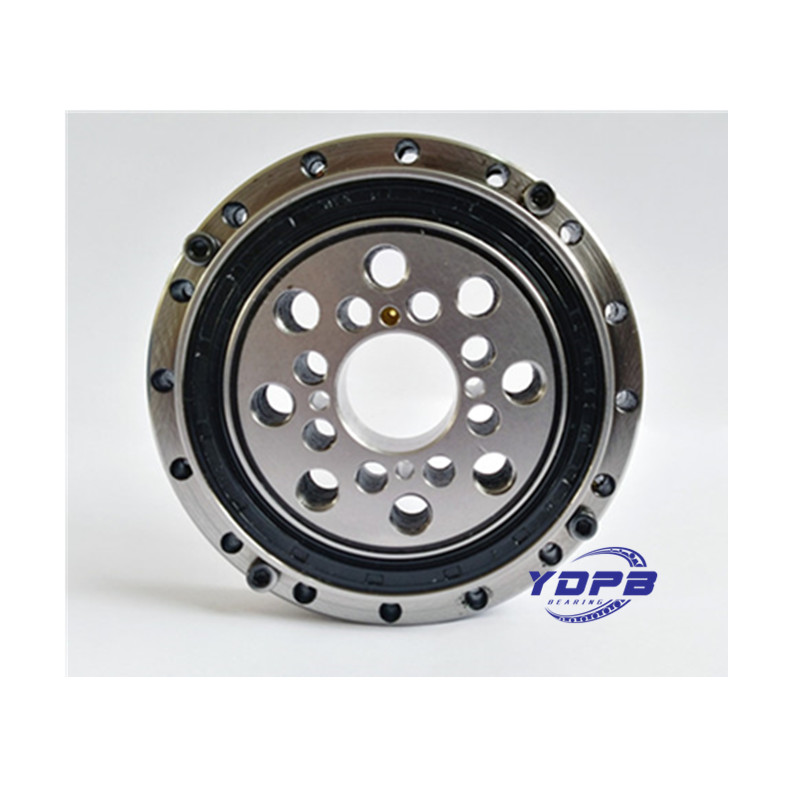

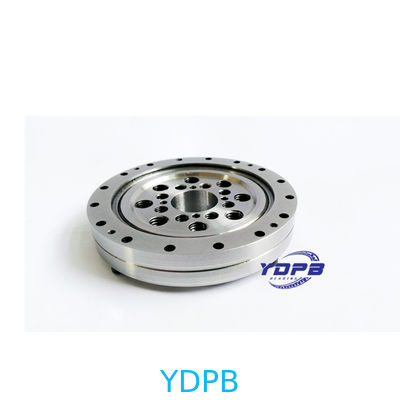

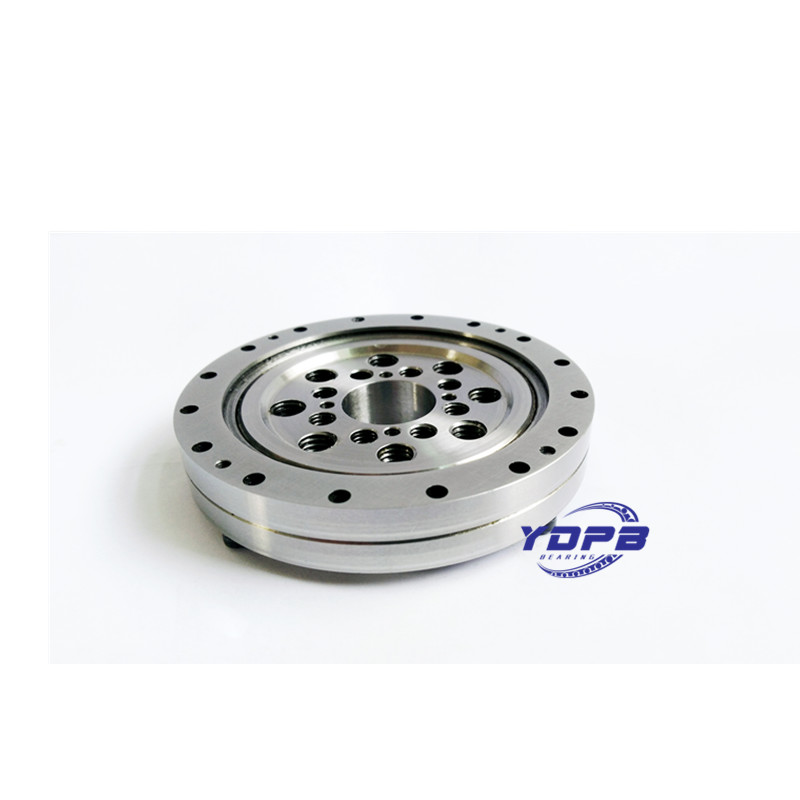

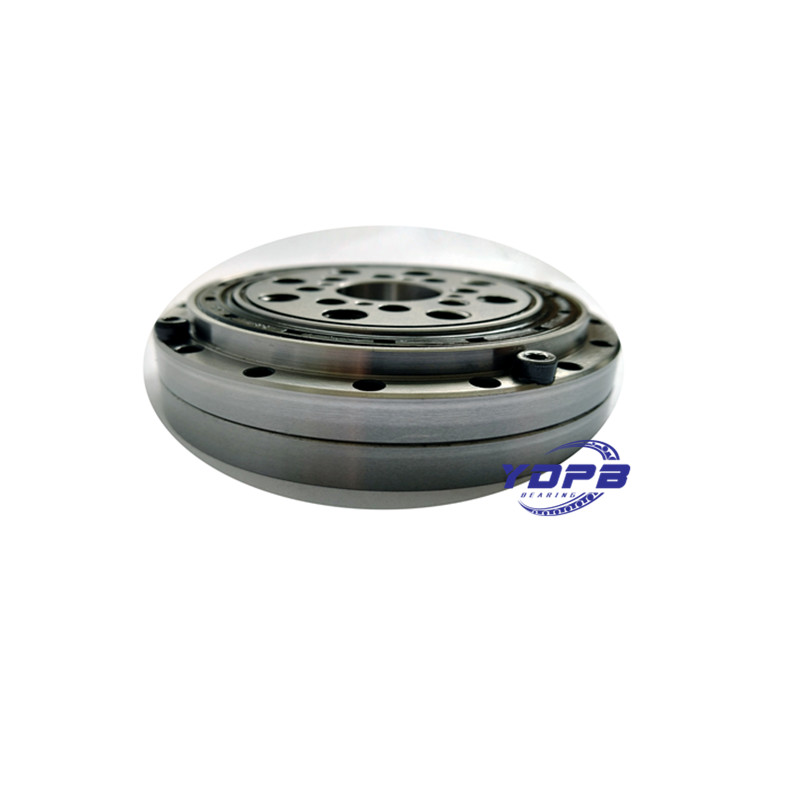

CSF25-6218 harmonic reducer bearing manufacturers 20x85x18.5mm​ robotic arm bearing factory

  • CSF25-6218 harmonic reducer bearing manufacturers 20x85x18.5mm​ robotic arm bearing factory
  • CSF25-6218 harmonic reducer bearing manufacturers 20x85x18.5mm​ robotic arm bearing factory
  • CSF25-6218 harmonic reducer bearing manufacturers 20x85x18.5mm​ robotic arm bearing factory
  • CSF25-6218 harmonic reducer bearing manufacturers 20x85x18.5mm​ robotic arm bearing factory
Place of Origin Luoyang，China
Nombre de la marca YDPB
Certificación ISO
Model Number CSF25-6218
Minimum Order Quantity 1PCS
Precio 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Model CSF25-6218 Material GCr15
Application Robots harmonic drive use Name Crossed Cylindrical roller bearing
Dimension 20x85x18.5mm​
Deja un mensaje
Descripción de producto

Harmonic drive bearings

Industrial robots bearings

CSF-25/CSG-25 dimension-20x85x18.5mm



Harmonic drive bearing series

CSF(CSG) Series(Outer ring split,inner ring integraty)

Outer ring split,inner ring integraty structure ,there is no need of flange and bearing seat.suitable for every kind of CSF(CSG) series harmonic drives.



CSF/CSG series model (Dimension dxDXH)mm

CSF-14/CSG-14 dimension-9x55x16.5mm

CSF-17/CSG-17 dimension-10x62x16.5mm

CSF-20/CSG-20 dimension-14x70x16.5mm

CSF-25/CSG-25 dimension-20x85x18.5mm

CSF-32/CSG-32 dimension-26x112x22.5mm

CSF-40/CSG-40 dimension-24x126x24mm

CSF-50/CSG-50 dimension-32x157x31mm

CSF-65/CSG-65 dimension-44x210x39mm



Details

CSF25-6218 harmonic reducer bearing manufacturers 20x85x18.5mm​ robotic arm bearing factory 0

CSF25-6218 harmonic reducer bearing manufacturers 20x85x18.5mm​ robotic arm bearing factory 1

Lubrication

Bearing with high quality compound lithium-based grease in factory,so under normal using condition there is no need to add grease.but for bearing running ,in the inital stage ,the frictional torque will increase temporarily, frictional torque will be stable when grease uniformly adhere to raceway and roller.

If the bearing using condition change,general grease can not meet your requirements ,pls contact us.

Mounting Method

CSF25-6218 harmonic reducer bearing manufacturers 20x85x18.5mm​ robotic arm bearing factory 2

Mounting caution

Pls clean up the parts e.g bearing seat ,axis etc,Which related to the bearing mounting. Check the burrs(make sure good fit tolerance between inner ring of bearing seat and outer ring of bearing, shaft neck and inner ring of bearing)

When tightening scew, Retaining bolt locking should be divided to 3~4 stages from incompletion locking to completion locking,according to the “ + crossing method” again and again.

Note

pls do not disassembly the bearing,for it is adjust by professional workers and to keep good preload and grease. If it runs abnormally after you receiving the bearing ,pls contact us.



Besides, bearing working temperature is -20℃~+80℃,if not ,pls contact us.


Many other precision bearings series available
